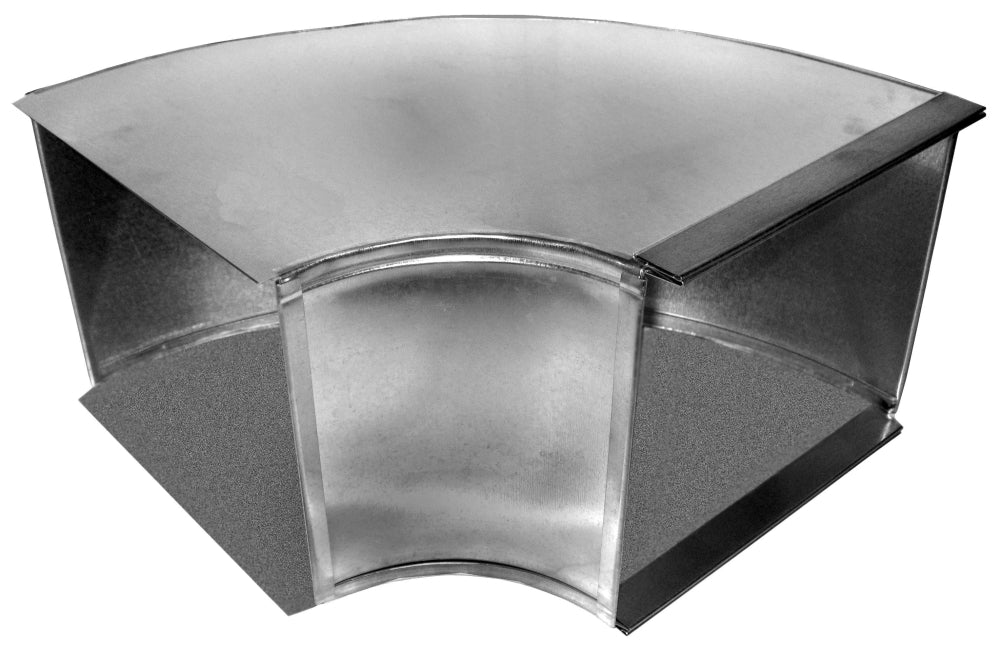

Southwark Metal 1146208 20 x 8 Flat Broadway Square Throat Sheet Metal Trunk Duct Elbow 90 Degree

Product Description

Southwark Metal 1146208 is a 20 in x 8 in hot dip galvanized steel flat Broadway square-throat sheet metal trunk duct elbow configured as a 90-degree radius elbow for HVAC systems. It provides a rectangular duct transition and a smooth 90-degree turn for ventilation runs, and is designed for residential and light commercial HVAC applications. The construction meets ACCA, SMACNA, and NATE standards and offers corrosion-resistant ductwork routing.

• 90-degree radius elbow for rectangular duct runs
• Hot dip galvanized steel construction for corrosion resistance
• Flat Broadway square-throat design; conforms to ACCA, SMACNA, and NATE

Product Highlights

Flat Broadway square-throat 90-degree duct elbow, hot dip galvanized steel, 20 in x 8 in, meets ACCA/SMACNA/NATE for residential and light commercial HVAC

Product Information

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 1146208

Technical Specifications

• Product Type: Duct Elbow
• Design: Flat Broadway square-throat
• Dimensions: 20 in x 8 in (rectangular throat)
• Angle: 90 degree radius
• Material: Hot dip galvanized steel
• Standards: ACCA, SMACNA, NATE
• Manufacturer: Southwark Metal Mfg. Co.
• Manufacturer Part Number: 1146208
• UNSPSC: 40141900
• Intended Use: Residential and light commercial HVAC applications
