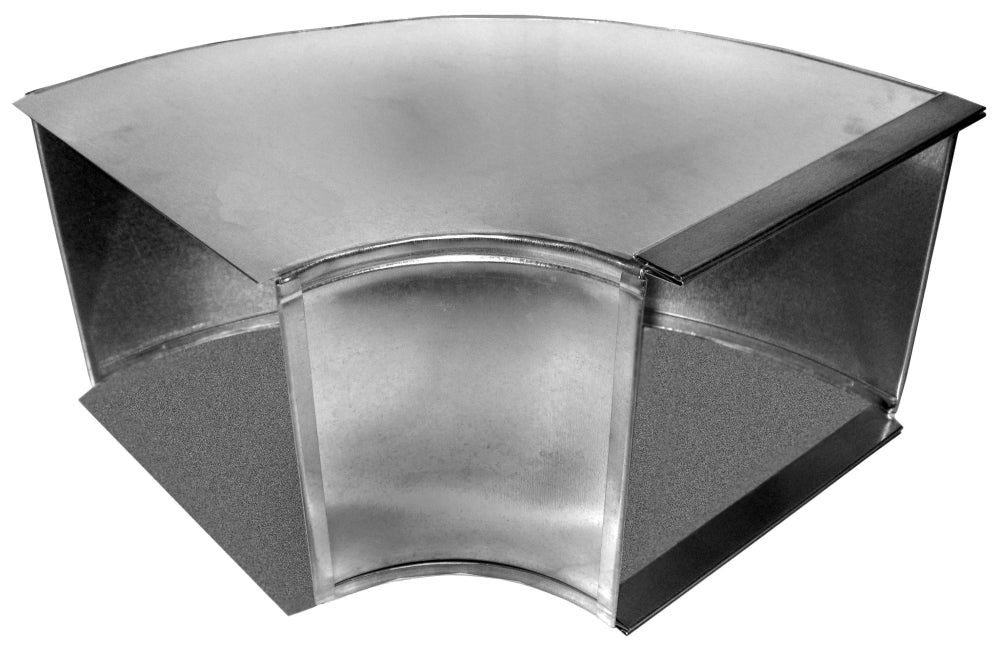

Southwark Metal 1146188 18 in x 8 in Hot Dip Galvanized Steel Flat Broadway Square Throat Sheet Metal Trunk Duct Elbow 90 Degree

Product Description

Southwark Metal 1146188 is an 18 in x 8 in hot dip galvanized steel flat Broadway square throat 90 degree sheet metal trunk duct elbow for HVAC systems. It joins rectangular trunk duct runs and provides a right-angle transition while maintaining a square throat profile to reduce airflow disturbance. The elbow conforms to ACCA, SMACNA, and NATE standards and is intended for residential and light commercial HVAC ductwork installations.

• Constructed of hot dip galvanized steel for corrosion resistance
• Flat Broadway square throat design sized 18 in x 8 in on both ends
• 90 degree angle elbow for rectangular trunk duct transitions; meets ACCA, SMACNA, and NATE

Product Highlights

18 in x 8 in rectangular trunk duct elbow, flat Broadway square throat design, hot dip galvanized steel, 90 degree angle, HVAC residential and light commercial use

Product Information

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 1146188

Technical Specifications

• Brand: Southwark Metal
• Manufacturer: Southwark Metal Mfg. Co.
• Manufacturer Part Number: 1146188
• Product Type: Duct Elbow
• Design: Flat Broadway square throat
• Size: 18 in x 8 in (both ends)
• Angle: 90 degree
• Material: Hot dip galvanized steel
• Applicable Standards: ACCA, SMACNA, NATE
• Application: HVAC; residential and light commercial
