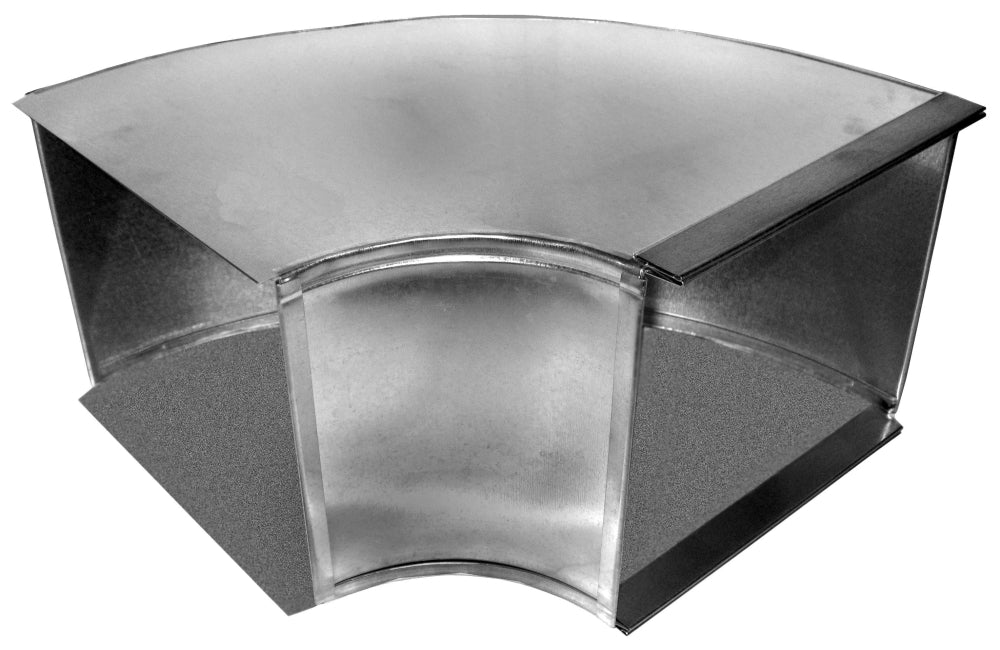

Southwark Metal 1146168 Flat Broadway Square Throat 90 Degree Sheet Metal Trunk Duct Elbow 16 in x 8 in

Product Description

Southwark Metal 1146168 is a 90 Degree sheet metal trunk duct elbow featuring a flat Broadway square throat design for rectangular HVAC ductwork. Constructed of hot dip galvanized steel with a spun and driven radius, it connects 16 in x 8 in duct sections for residential and light commercial systems. The elbow conforms to ACCA, SMACNA, and NATE standards and is intended for trunk duct transitions in HVAC installations.

• Flat (Broadway) square throat design for rectangular trunk duct transitions
• 90 Degree elbow with spun and driven (S&D) radius for smooth airflow
• Constructed of hot dip galvanized steel; meets ACCA, SMACNA, and NATE standards

Product Highlights

90 Degree hot dip galvanized flat Broadway square throat elbow for 16 in x 8 in rectangular HVAC trunk ducts; meets ACCA, SMACNA, NATE.

Product Information

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 1146168

Technical Specifications

• Manufacturer: Southwark Metal Mfg. Co.
• Manufacturer Part Number: 1146168
• Product Type: Duct Elbow
• Material: Hot dip galvanized steel
• Design: Flat (Broadway), square throat
• Size A: 16 in x 8 in
• Size B: 16 in x 8 in
• Angle: 90 Degree
• Radius: Spun and driven (S&D) radius
• Standards: ACCA, SMACNA, NATE
• Application: HVAC residential and light commercial
