Southwark Metal 1140R1610 Shortway Vertical 90 Degree Elbow

Product Description

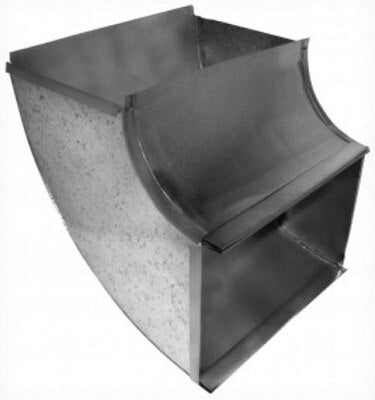

The SOUTHWARK METAL 1140R1610 is a shortway vertical 90-degree radius elbow designed for rectangular sheet metal ductwork. This fitting changes airflow direction at a 90-degree angle using a short-radius geometry, which suits installations where available space is limited. The nominal duct opening measures 16 x 10 inches. Licensed HVAC technicians and sheet metal contractors install this fitting during new construction and retrofit duct system work to route supply or return air around structural obstructions while maintaining system airflow.

This elbow is used in residential and light commercial forced-air HVAC systems where rectangular ductwork transitions or direction changes are required. The shortway orientation means the 16-inch dimension runs parallel to the direction of the turn, making it the preferred choice when ceiling or wall clearance is the limiting factor. It connects inline with standard rectangular duct sections and is typically sealed with mastic or metal-backed tape per system requirements.

Key Features

• 90-degree radius bend for directional airflow routing in rectangular duct systems
• Shortway vertical orientation suits tight installation clearances
• 16 x 10 inch opening fits standard rectangular duct sections
• Sheet metal construction for durability in forced-air applications
• Compatible with mastic sealant or metal-backed tape for airtight connections

Compatibility

Designed as an OEM-style replacement or new-installation fitting for residential and light commercial rectangular sheet metal duct systems with 16 x 10 inch duct openings.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified sheet metal contractor in accordance with SMACNA duct construction standards and applicable local mechanical codes. Power down the air handling unit before working on connected ductwork. Secure the elbow to adjacent duct sections with sheet metal screws and seal all joints with UL 181-rated mastic or metal-backed tape to maintain system static pressure and prevent air leakage.

Technical Specifications

• Duct Size: 16 x 10 inches
• Elbow Type: Shortway Vertical 90 Degree Radius
• Duct Shape: Rectangular
• Material: Sheet Metal

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 1140R1610
