Southwark Metal 1140R1410 Vertical 90 Radius Elbow 14x10

Product Description

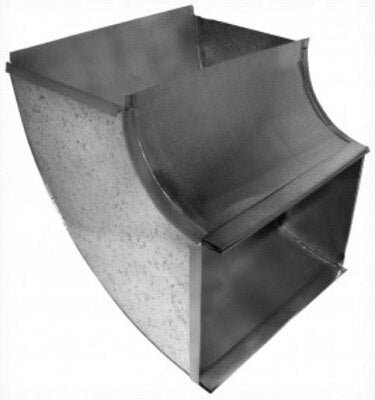

The SOUTHWARK METAL 1140R1410 is a vertical 90-degree radius elbow designed for rectangular sheet metal ductwork. This fitting redirects airflow at a right angle while maintaining a radius turn geometry, which reduces static pressure loss compared to a square-throat elbow. It is a standard component in forced-air HVAC distribution systems and is fabricated from sheet metal to meet typical duct construction requirements. HVAC installers and sheet metal contractors use this fitting in both new construction and retrofit duct systems where a smooth, radius turn is specified.

This elbow is sized at 14 x 10 inches, making it suited for mid-size trunk or branch duct runs in residential and light commercial forced-air systems. It installs in vertical plane orientations where ductwork must change direction by 90 degrees. The radius design helps maintain consistent airflow velocity through the turn, reducing turbulence and noise in the duct system.

Key Features

• Vertical orientation 90-degree radius elbow for rectangular ductwork
• 14 x 10 inch duct size accommodates mid-range airflow applications
• Radius turn geometry reduces static pressure loss versus square-throat fittings
• Sheet metal fabrication for durability and standard duct system compatibility
• Designed for use in forced-air HVAC supply and return duct systems

Compatibility

Designed as an OEM-style rectangular sheet metal duct fitting for use in standard 14 x 10 inch forced-air HVAC ductwork systems.

Installation Notes

Installation is performed by licensed HVAC technicians or sheet metal contractors. The duct system should be fully depressurized and the air handler or furnace shut down before modifying any duct section. Seal all joints with mastic or UL-listed foil tape per local mechanical code requirements. Ensure the fitting is properly supported and secured to adjacent duct sections before restoring system operation.

Technical Specifications

• Duct Size: 14 x 10 inches
• Elbow Angle: 90 degrees
• Turn Type: Radius
• Orientation: Vertical
• Material: Sheet Metal

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 1140R1410
