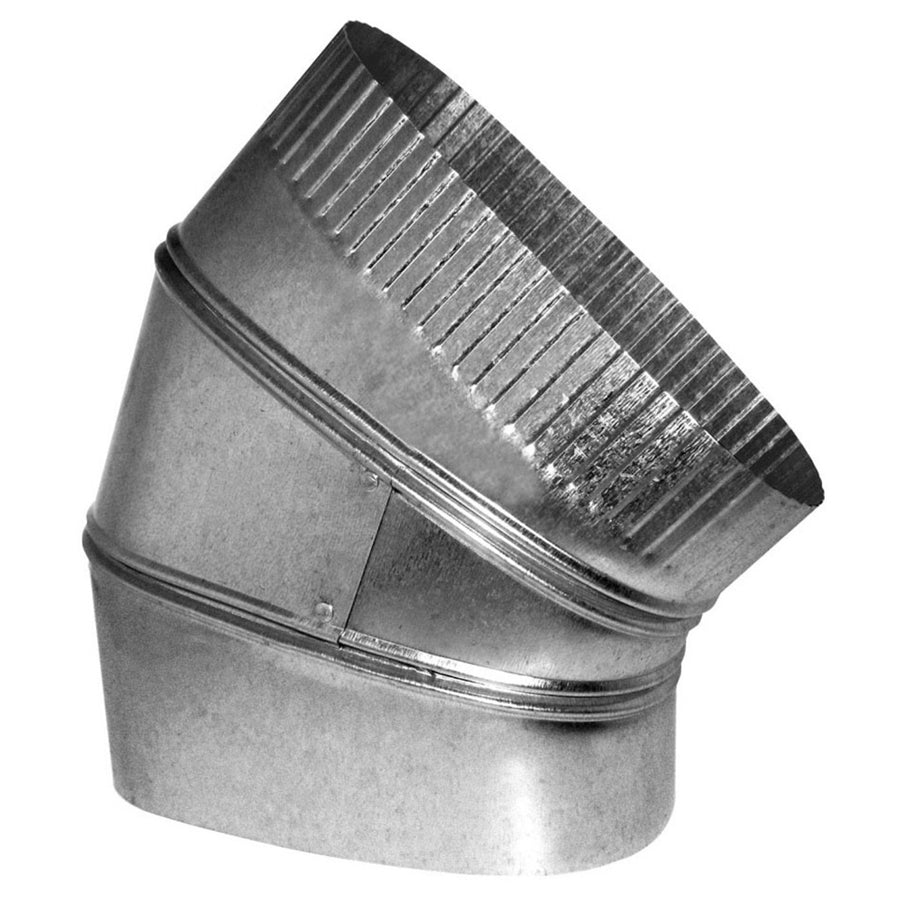

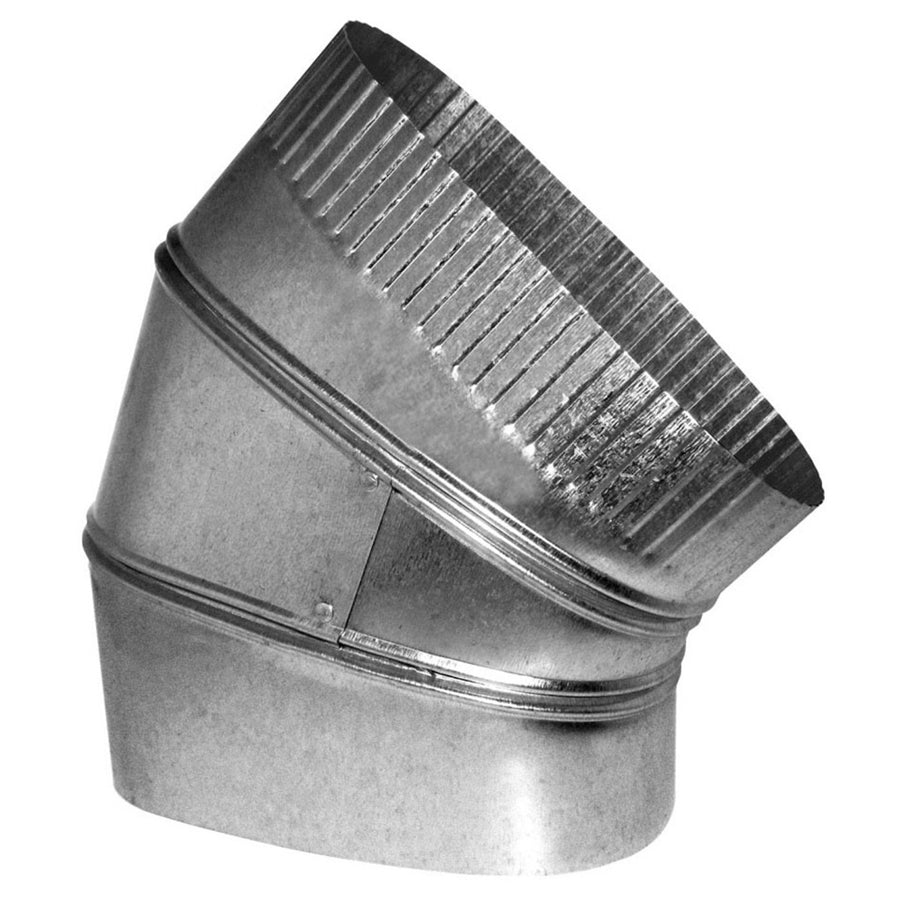

Southwark Metal 113_6IN Duct Angle 45 Degree 6 X 6 Inch

Product Description

The SOUTHWARK METAL 113_6IN is a 45-degree sheet metal duct angle fitting used in forced-air HVAC duct systems. Fabricated from hot-dip galvanized steel, this oval horizontal fitting is built for flat, Broadway, and longway oval duct configurations. It provides a clean 45-degree directional change in rectangular or oval duct runs where space constraints or layout requirements prevent a straight run. HVAC sheet metal mechanics and duct installers specify this type of fitting for both new construction and retrofit duct systems. The 6-inch by 6-inch dimensions make it a common size in residential and light commercial applications.

This fitting is suited for supply and return air duct systems where oval duct transitions are required. The flat, Broadway, and longway oval designations indicate compatibility with multiple oval duct orientations, giving installers flexibility in tight mechanical spaces. It is typically installed in horizontal duct runs and is appropriate for residential forced-air systems as well as light commercial HVAC installations where ACCA and SMACNA standards govern ductwork fabrication and installation practices.

Key Features

• 45-degree angle provides directional change in oval duct runs
• Hot-dip galvanized steel construction for corrosion resistance in HVAC environments
• Compatible with flat, Broadway, and longway oval duct configurations
• 6 inches x 6 inches sizing suits common residential and light commercial duct systems
• Meets ACCA and SMACNA applicable standards

Compatibility

Designed for use in flat, Broadway, and longway oval horizontal duct systems. Fabricated to meet ACCA and SMACNA standards for sheet metal duct fittings.

Installation Notes

Sheet metal duct fittings of this type are installed by licensed HVAC technicians or qualified sheet metal mechanics. Power down the air handling unit and close any isolation dampers before modifying an existing duct run. Secure all joints with sheet metal screws and seal with UL 181-listed mastic or foil tape per SMACNA installation guidelines. Follow local mechanical code requirements for duct support spacing and clearances.

Technical Specifications

• Angle: 45 degrees
• Material: Hot-Dip Galvanized Steel
• Size A: 6 inches
• Size B: 6 inches
• Type: Flat, Broadway, Longway, Oval
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 113_6IN
