Southwark Metal 110_10X6-6 Oval Stackhead 10x6x6

Product Description

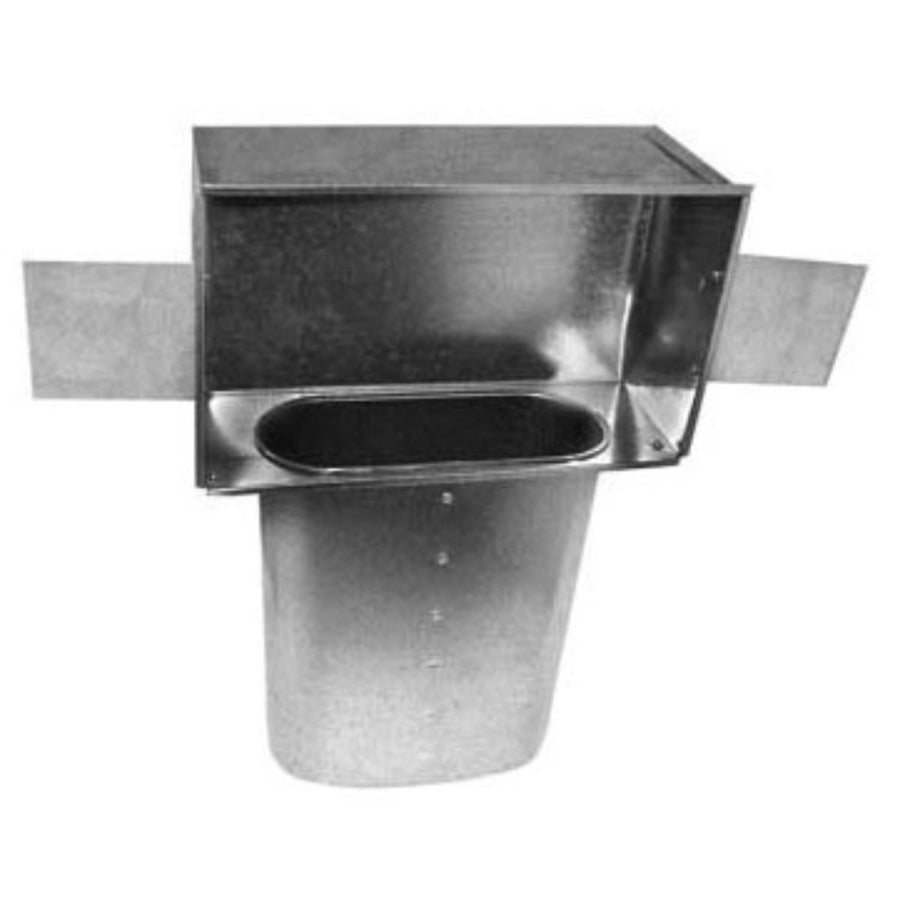

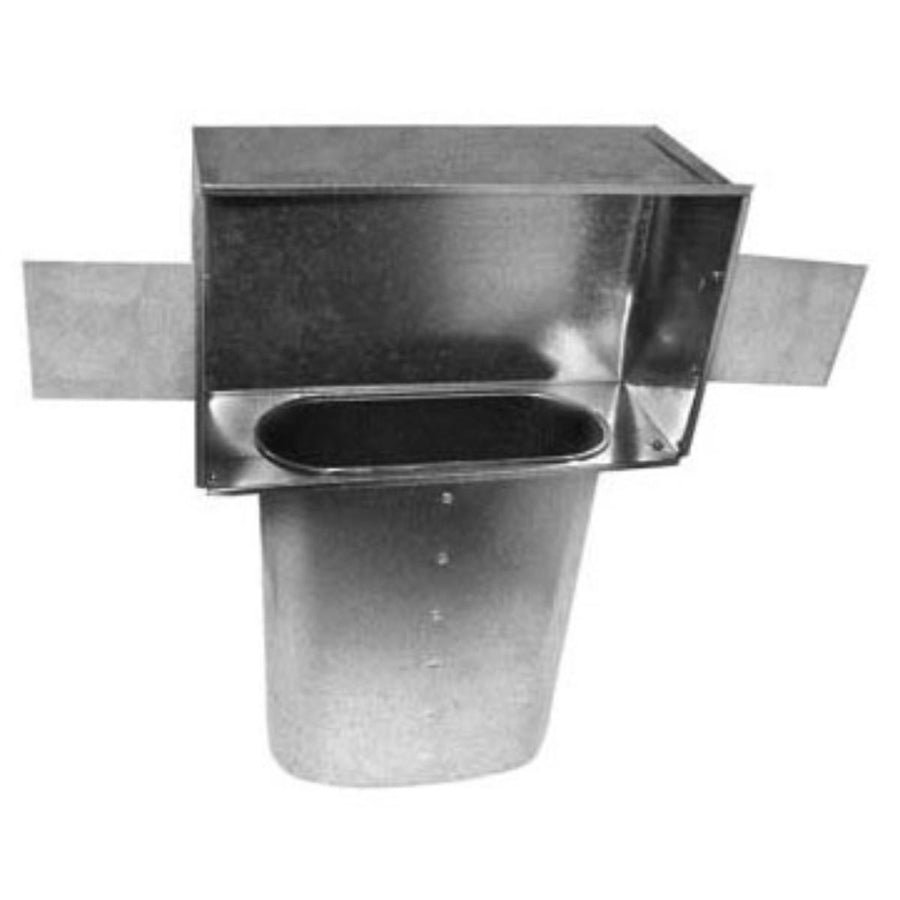

The SOUTHWARK METAL 110_10X6-6 is a hot-dip galvanized steel oval pipe stackhead designed for use in residential and light commercial HVAC duct systems. A stackhead transitions between the main supply trunk and a branch runout, directing conditioned air from the plenum or main duct into a smaller branch line. This fitting measures 10 inches by 6 inches by 6 inches and is fabricated from hot-dip galvanized steel for corrosion resistance and long service life. HVAC sheet metal installers and ductwork fabricators use this fitting during new construction and retrofit installations. It meets ACCA and SMACNA applicable standards, making it appropriate for code-compliant forced-air system work.

This oval stackhead is suited for forced-air heating and cooling distribution systems in residential and light commercial applications. It connects to oval duct branch runs where space constraints make round duct impractical, such as inside wall cavities or between floor joists. HVAC contractors and sheet metal mechanics typically install this fitting during rough-in or when reconfiguring supply duct layouts. Its oval profile allows routing in confined framing spaces while maintaining adequate airflow cross-section for the branch run.

Key Features

• Hot-dip galvanized steel construction for corrosion resistance in air distribution environments
• Oval fitting profile designed for installations in tight framing cavities and confined spaces
• Meets ACCA and SMACNA applicable standards for sheet metal duct fabrication
• Nominal dimensions of 10 inches by 6 inches by 6 inches for consistent fitment in standard duct layouts
• Stackhead configuration transitions supply trunk to branch runout in forced-air systems

Compatibility

Designed as an OEM-style replacement and new-construction fitting for oval branch duct systems in residential and light commercial forced-air HVAC applications following ACCA and SMACNA sheet metal duct standards.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified sheet metal mechanic. Power down the air handling unit and confirm the system is de-energized before making any duct connections. Seal all joints with UL-listed duct sealant or metal-backed tape per SMACNA guidelines to prevent air leakage. Follow local mechanical codes and ACCA Manual D requirements for branch sizing and fitting placement.

Technical Specifications

• Dimensions: 10 inches x 6 inches x 6 inches
• Material: Hot-Dip Galvanized Steel
• Type: Oval
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 110_10X6-6
