Southwark Metal 106_8IN Sheet Metal Pipe End Boot 8x8

Product Description

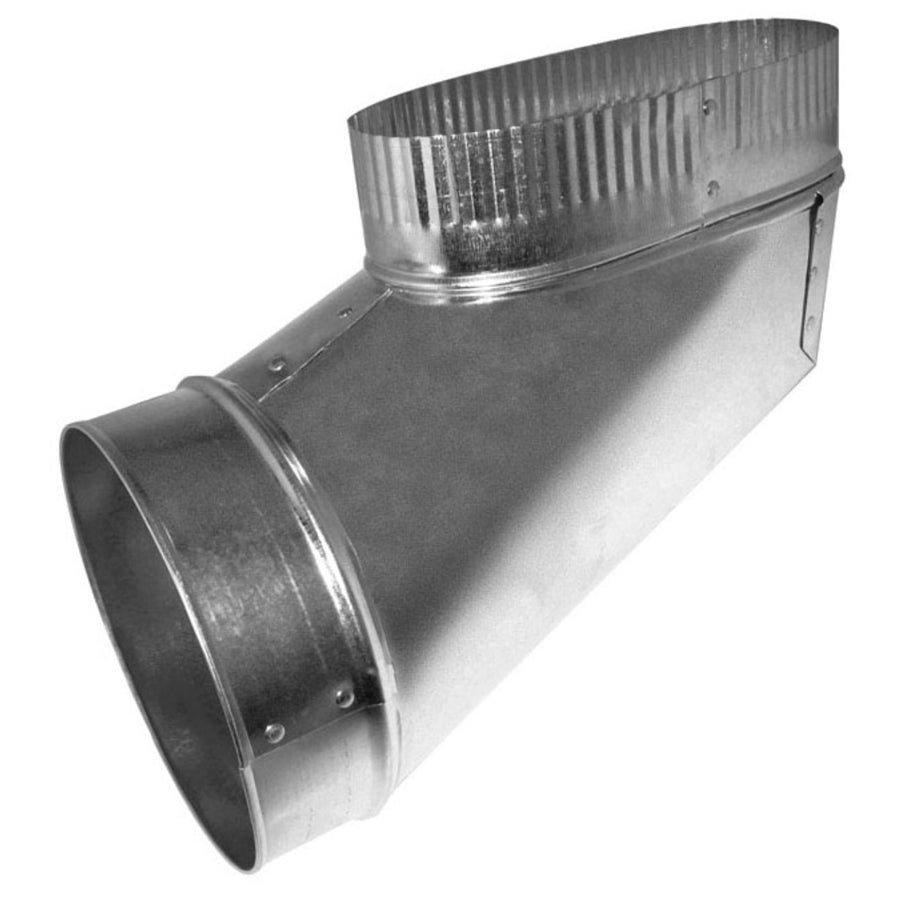

The SOUTHWARK METAL 106_8IN is a sheet metal pipe end boot designed to transition an oval duct opening to a round pipe connection. Constructed from hot dip galvanized steel, it delivers corrosion resistance suited to the demands of residential and light commercial HVAC ductwork. This fitting is configured in a reverse, crimp-end style, meaning the crimped end inserts into the adjoining round duct section for a secure mechanical fit. The 8-inch by 8-inch sizing covers the oval face dimension and the 8-inch round diameter outlet. Licensed HVAC technicians and sheet metal contractors install this type of fitting during new duct installation or replacement service work.

This boot is used where a rectangular or oval duct run must terminate into a round pipe, a common transition point at floor, wall, or ceiling register locations in forced-air heating and cooling systems. It is applicable in systems built to ACCA and SMACNA standards, making it appropriate for installations where duct design and fabrication must conform to those industry guidelines. Typical install scenarios include residential trunk-and-branch duct systems and light commercial air distribution layouts requiring oval-to-round transitions at supply or return outlets.

Key Features

• Hot dip galvanized steel construction for corrosion resistance in HVAC duct environments
• Oval to round transition configuration handles common duct-to-pipe layout changes
• Reverse crimp end design seats securely into mating round duct sections
• 8-inch oval face by 8-inch round diameter outlet dimensions
• Meets ACCA and SMACNA applicable standards for duct system fabrication

Compatibility

Designed as an OEM-style sheet metal fitting for forced-air HVAC duct systems requiring an oval-to-round pipe end boot transition at 8-inch by 8-inch sizing, built to ACCA and SMACNA standards.

Installation Notes

Installation is performed by a licensed HVAC technician or sheet metal contractor. Shut down the air handling system and confirm the unit is de-energized before beginning duct work. The crimped end should be inserted into the receiving round duct section and secured with sheet metal screws and UL-listed foil tape or mastic sealant per SMACNA guidelines. Follow local mechanical codes for duct sealing and support requirements.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Size A (Oval Face): 8 inches
• Size B (Round Outlet Diameter): 8 inches
• Type: Oval to Round, Reverse, Crimp
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 106_8IN
