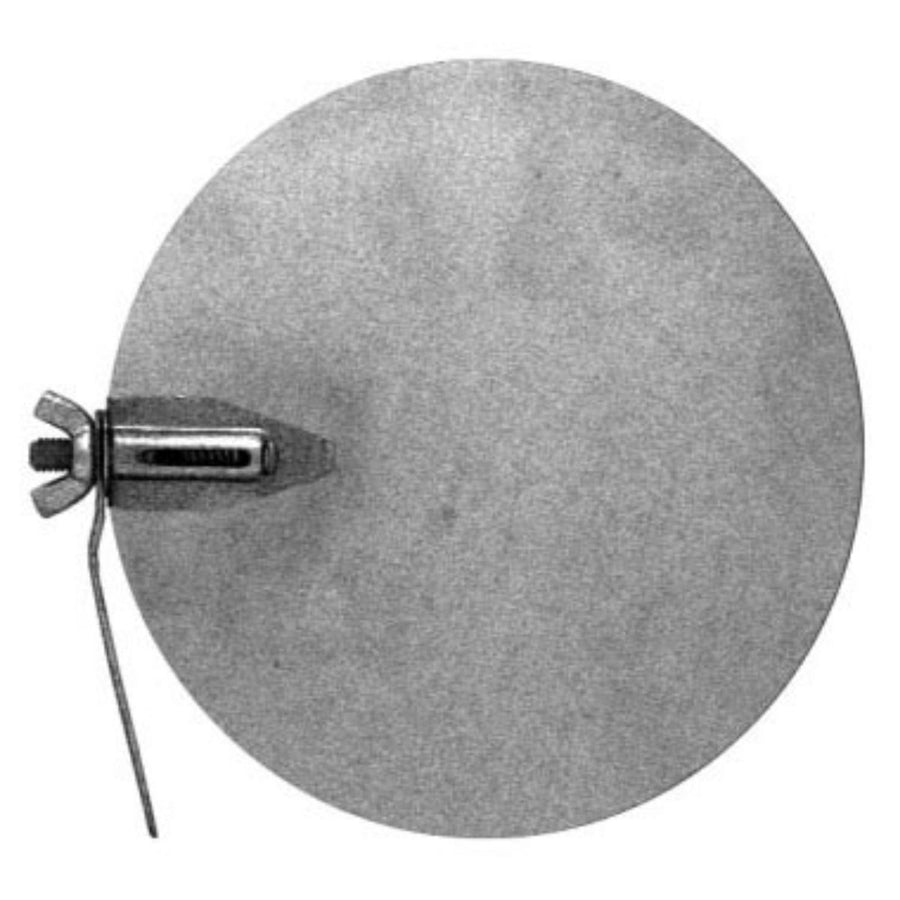

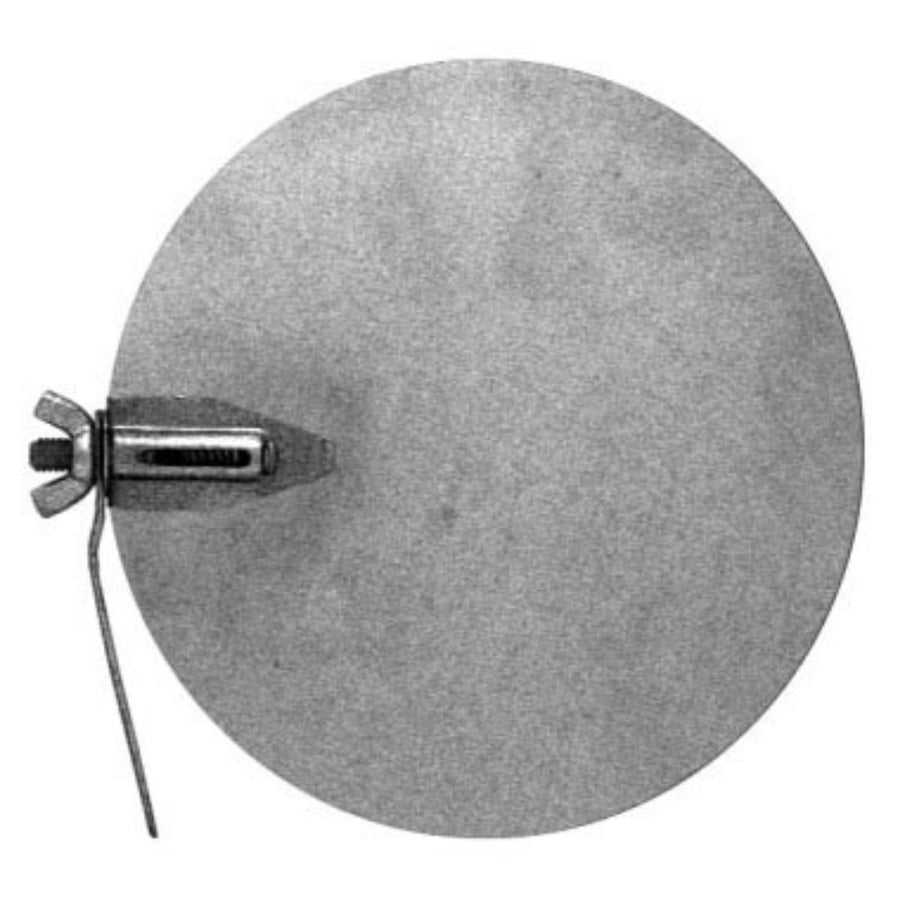

Southwark Metal 106714 Quadrant Damper 14 Inches

Product Description

The SOUTHWARK METAL 106714 is a 14-inch quadrant damper designed for use in sheet metal ductwork systems. A quadrant damper provides manual airflow control within a duct run, allowing a technician to balance or shut off air distribution to individual zones or branch lines. The damper is operated by rotating a quadrant-style blade that pivots inside the duct collar, restricting or opening the airflow path. This type of damper is a standard component in residential and light commercial forced-air HVAC installations and is typically installed by licensed HVAC technicians during system commissioning or duct modification work.

The 106714 is suited for round duct branch applications where a 14-inch diameter fitting is required. It is commonly installed in trunk-and-branch duct systems to provide balancing capability on individual supply runs. Quadrant dampers of this size are found in both new construction and retrofit HVAC projects where manual zone control or airflow throttling is needed without the complexity of motorized components.

Key Features

• 14-inch diameter quadrant blade for manual airflow regulation in round ductwork
• Quadrant-style operation allows simple blade position adjustment and locking
• Standard round duct sizing for straightforward integration into existing duct systems
• Designed for manual balancing of supply or return branch lines

Compatibility

Designed as an OEM-style replacement or new-installation component for 14-inch round duct systems in residential and light commercial forced-air HVAC applications.

Installation Notes

Installation is performed by qualified HVAC technicians. Shut down the air handling unit and confirm the system is de-energized before cutting into or modifying ductwork. Secure the damper in the duct collar using sheet metal screws and seal joints with approved duct sealant or foil tape per local mechanical code requirements. Once installed, set blade position during system commissioning to achieve proper airflow balance across all branches.

Technical Specifications

• Damper Type: Quadrant
• Duct Diameter: 14 inches

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 106714
