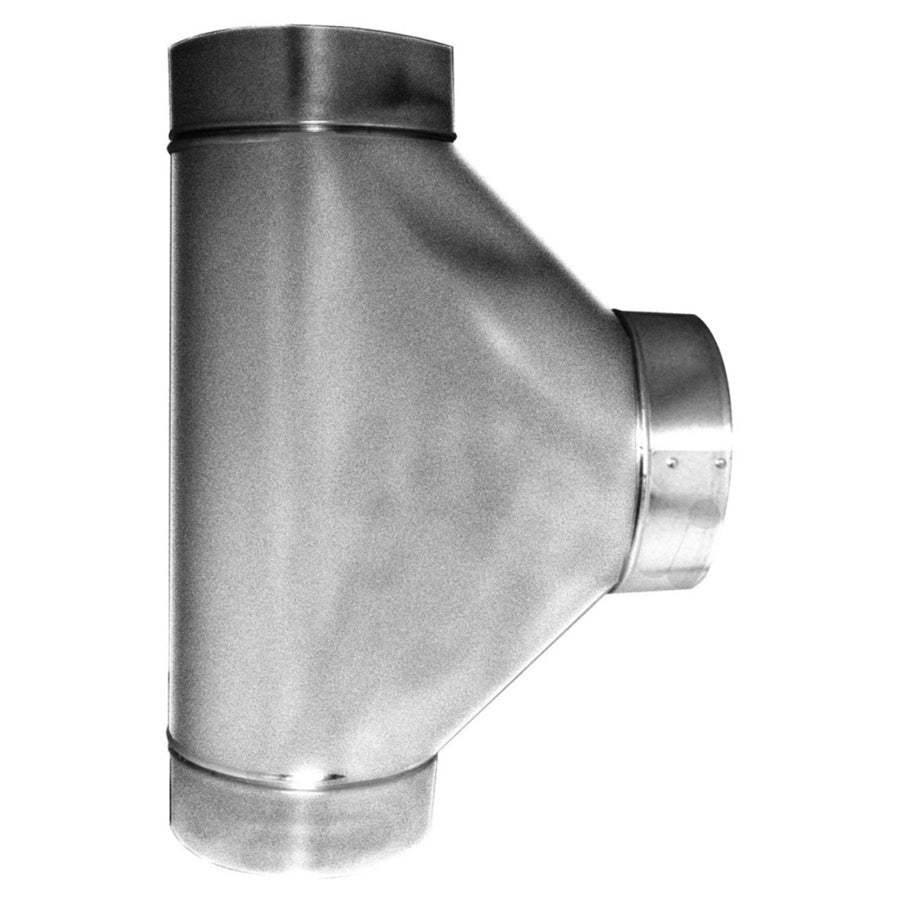

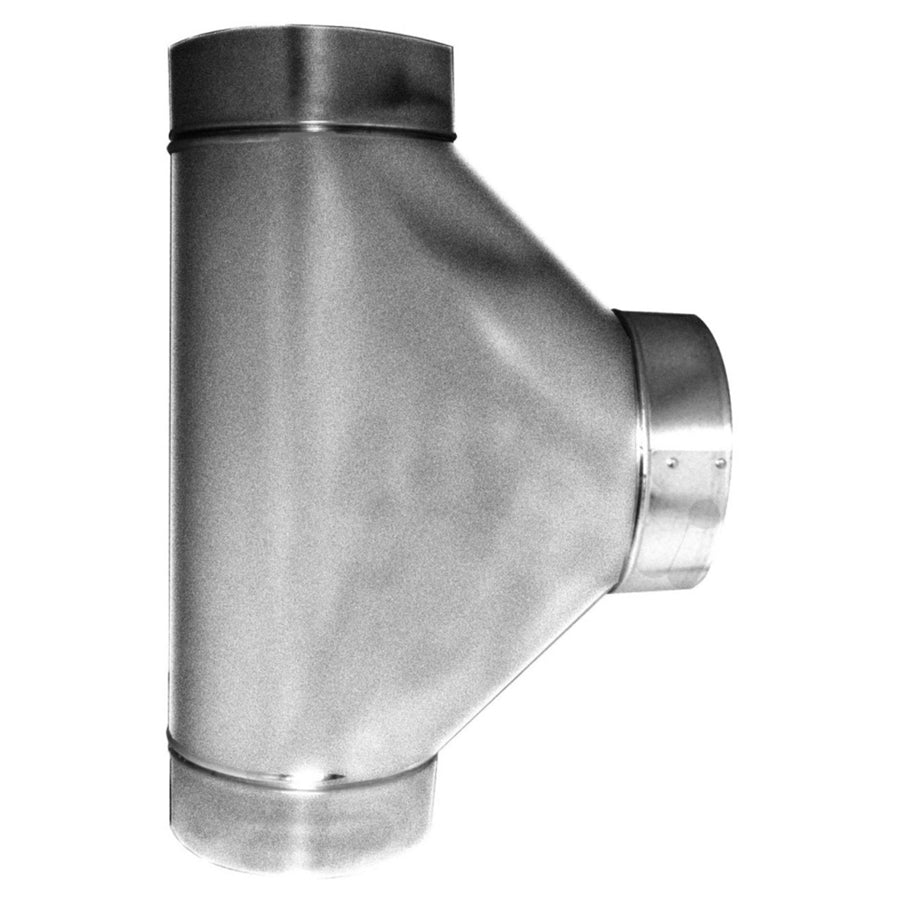

Southwark Metal 1060_4IN Galvanized Steel Pipe Tee 4x4x4 in

Product Description

The SOUTHWARK METAL 1060_4IN is a 4-inch x 4-inch x 4-inch free-flow pipe tee fabricated from 30-gauge hot-dip galvanized steel. Designed for round duct branch connections in forced-air HVAC systems, this tee allows airflow to split or merge at a junction point without restrictive baffles or internal obstructions. The hot-dip galvanization provides corrosion resistance suitable for both supply and return air applications. HVAC sheet metal installers and duct fabricators use this fitting as a standard branch takeoff in residential and light commercial ductwork assemblies. It meets ACCA and SMACNA applicable standards, making it appropriate for installations that require code-referenced duct construction practices.

This pipe tee is intended for round galvanized duct systems in residential and light commercial forced-air heating and cooling applications. The free-flow design supports balanced airflow distribution across branch runs. It is used in trunk-and-branch duct layouts where a main run must feed a lateral branch of equal diameter. No compatible model list is provided by the manufacturer for this fitting.

Key Features

• 4 inches x 4 inches x 4 inches equal-diameter tee configuration
• 30-gauge hot-dip galvanized steel construction for corrosion resistance
• Free-flow interior design minimizes airflow restriction at the branch junction
• Meets ACCA and SMACNA applicable standards for duct construction
• Compatible with standard round galvanized duct and fittings in the same diameter

Compatibility

Designed as an OEM-style replacement and new-construction fitting for 4-inch round galvanized duct systems following ACCA and SMACNA duct construction standards.

Installation Notes

Installation of this fitting is typically performed by licensed HVAC technicians or sheet metal mechanics. Power down the air handling unit and close the dampers serving the affected duct run before beginning work. Secure the tee to adjoining duct sections using sheet metal screws and seal all joints with UL 181-rated mastic or metal foil tape per applicable mechanical codes. Follow SMACNA duct construction guidelines for support spacing and joint sealing requirements.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Gauge: 30
• Size: 4 inches x 4 inches x 4 inches
• Type: Free Flow
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 1060_4IN
