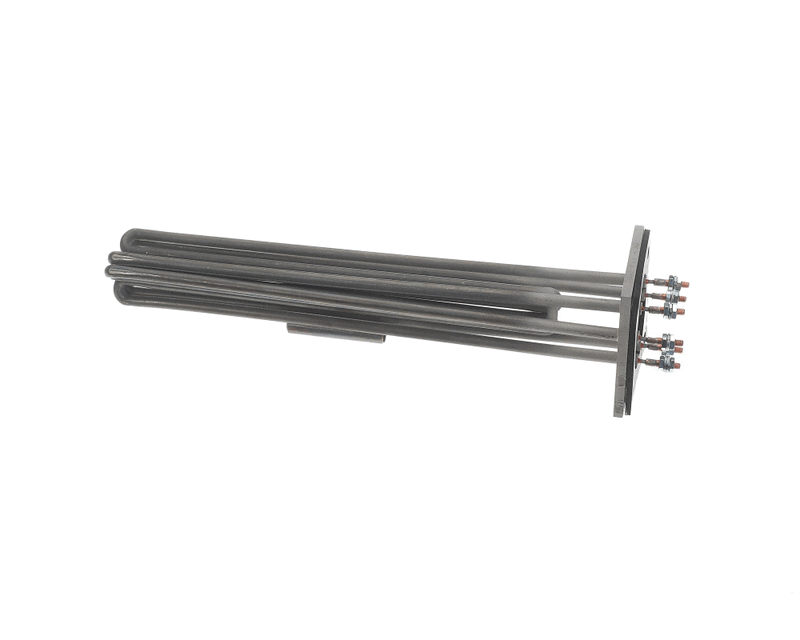

Southbend Range 7972-1077 Element Assembly 10kw 480V

Product Description

The SOUTHBEND RANGE 7972-1077 is a replacement heating element assembly rated at 10 kilowatts (kW) and 480 volts for use in commercial electric cooking and foodservice equipment. This assembly provides the resistive heating capacity that drives high-temperature cooking operations in commercial kitchens. At 10 kW and 480 volts, the element is designed for heavy-duty, three-phase electrical systems common in commercial foodservice installations. Licensed appliance technicians and commercial kitchen equipment service professionals are the primary installers of this part.

This element assembly is intended for commercial foodservice applications where high-wattage electric heating is required. It is a direct-fit replacement part for Southbend Range commercial appliances. Typical installation scenarios include servicing electric ranges, ovens, or similar cooking equipment in restaurants, institutional kitchens, and other commercial food preparation environments where 480-volt electrical infrastructure is present.

Key Features

• 10 kW output provides high-capacity resistive heating for commercial cooking equipment
• Rated for 480-volt systems, compatible with three-phase commercial electrical service
• OEM replacement assembly maintaining original performance specifications
• Designed for the demands of continuous-duty commercial foodservice environments

Compatibility

Designed as an OEM-style replacement element assembly for Southbend Range commercial electric cooking equipment operating on 480-volt electrical systems.

Installation Notes

Installation should be performed by a qualified appliance service technician or licensed electrician familiar with commercial foodservice equipment. Always disconnect and lock out power at the breaker before servicing any heating element assembly. Verify that the supply voltage and circuit ampacity match the element rating before energizing. Follow all applicable local electrical codes and NFPA 70 (NEC) requirements when working on 480-volt commercial circuits.

Technical Specifications

• Power Rating: 10 kW
• Voltage: 480 volts

Standard Information

• Brand: SOUTHBEND RANGE
• Manufacturer Part Number: 7972-1077
