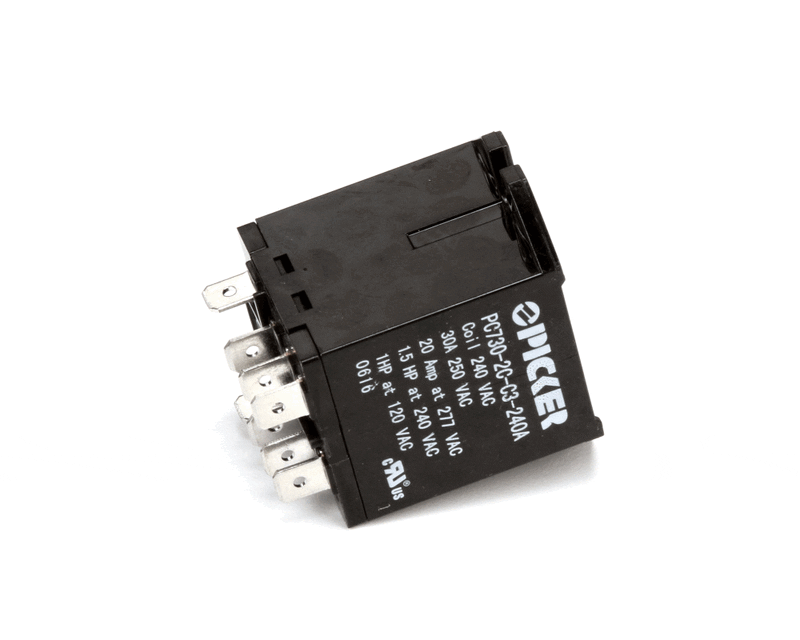

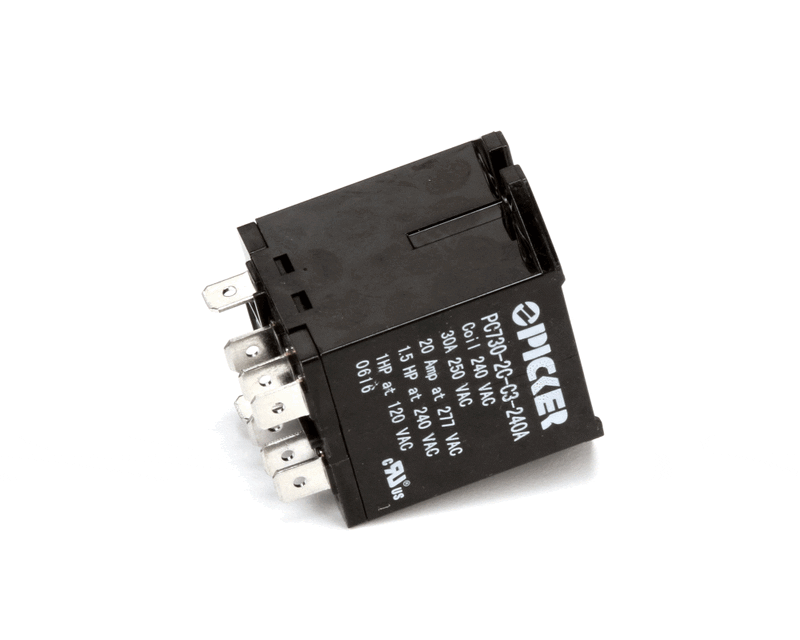

Southbend Range 2714515 Relay 240V 30A Replaces 9332-2

Product Description

The SOUTHBEND RANGE 2714515 is a genuine OEM replacement relay designed for commercial cooking equipment. Operating at 240 volts with a 30-amp coil rating, this relay controls high-current load circuits by responding to lower-level control signals within the unit. It serves as a direct replacement for the 9332-2 relay. Licensed commercial kitchen technicians and qualified service professionals are the typical installers of this component. Its compact form factor — 3 inches long by 2 inches wide by 2 inches tall — fits within the electrical compartments of the equipment it supports.

This relay is suited for commercial foodservice equipment applications where precise load switching at 240 volts is required. It is commonly found in Southbend Range cooking equipment that relies on relay-based control circuits to manage heating elements, motors, or other high-draw loads. Service is typically performed during scheduled maintenance or when fault diagnosis points to a failed switching component in the control circuit.

Key Features

• Genuine OEM replacement part — direct fit for the 9332-2 relay
• 240-volt coil rating for commercial-voltage control circuits
• 30-amp capacity handles high-current load switching
• Compact dimensions: 3 inches x 2 inches x 2 inches
• Lightweight at 0.5 pounds for easy handling during service

Compatibility

Designed as a genuine OEM-style replacement for the 9332-2 relay used in SOUTHBEND RANGE commercial cooking equipment. Verify equipment model and wiring configuration before ordering.

Installation Notes

Installation should be performed by a qualified commercial appliance technician or licensed electrician familiar with 240-volt commercial equipment. Always disconnect and lock out power to the unit before accessing internal electrical components. Verify that replacement relay ratings match the original specifications before energizing the circuit. Refer to the equipment wiring diagram to confirm proper terminal connections prior to reassembly.

Technical Specifications

• Voltage: 240 volts
• Amperage: 30 amps
• Length: 3 inches
• Width: 2 inches
• Height: 2 inches
• Weight: 0.5 pounds

Standard Information

• Brand: SOUTHBEND RANGE
• Manufacturer Part Number: 2714515
