Southbend Range 1208437 Immersion Steamer Element 208V 7500W

Product Description

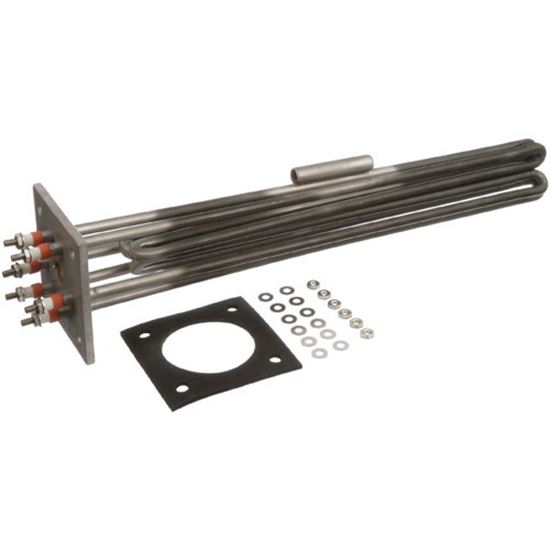

The SOUTHBEND RANGE 1208437 is an immersion heating element designed for commercial steam equipment. Rated at 208 volts, 7500 watts, single-phase, this element provides direct-immersion heat to the water chamber of commercial steamers. The flange measures 3.5 inches square with mounting bolt hole centers spaced 2.5 inches apart. The element shaft extends 15.5 inches inside the vessel. Termination is via six threaded stud terminals for nut-secured connections, replacing an earlier flag-terminal design. A 3/8-inch FPT hole is located at the center of the flange, and a 2.5-inch-long by 3/8-inch ID tube is welded to the side of the element. A compatible gasket (32-1386) is included.

This immersion element is intended for commercial steamer units in foodservice environments. It installs into the water vessel of the steamer through the square flange mounting interface. Typical deployment is in commercial kitchens operating on 208-volt single-phase electrical service. Compatible units include Vulcan steamer models VSX3, VSX4, VSX5, VSX7EO, and EC series. This part is specified as a direct replacement for the original Southbend-supplied element on applicable steamer configurations.

Key Features

• 208V, 7500W, single-phase immersion heating element
• 3.5-inch square flange with 2.5-inch mounting bolt hole centers
• 15.5-inch inside shaft length for direct water chamber immersion
• Six threaded stud terminals for nut-secured wiring connections
• 3/8-inch FPT center hole in flange for plumbing connection
• 2.5-inch-long x 3/8-inch ID tube welded to element side
• Includes gasket 32-1386

Compatibility

Compatible with Vulcan steamer models VSX3, VSX4, VSX5, VSX7EO, and EC series. Replaces the original immersion element on applicable SOUTHBEND RANGE commercial steamer configurations.

Installation Notes

Installation should be performed by a qualified commercial kitchen equipment technician or licensed electrician. Disconnect and lock out all electrical power to the steamer before removing or installing the element. Drain the water vessel completely before disturbing the flange assembly. Confirm gasket seating and flange bolt torque is adequate to prevent leaks before returning the unit to service. Wiring terminations at the threaded studs must comply with applicable NEC requirements for commercial foodservice equipment.

Technical Specifications

• Voltage: 208 volts
• Wattage: 7500 watts
• Phase: 1-phase
• Flange Size: 3.5 inches square
• Mounting Bolt Hole Centers: 2.5 inches
• Inside Length: 15.5 inches
• Terminal Type: Threaded studs, 6 terminals
• Flange Center Port: 3/8 inches FPT
• Side Tube: 2.5 inches long x 3/8 inches ID, welded
• Included Gasket: 32-1386

Standard Information

• Brand: SOUTHBEND RANGE
• Manufacturer Part Number: 1208437
