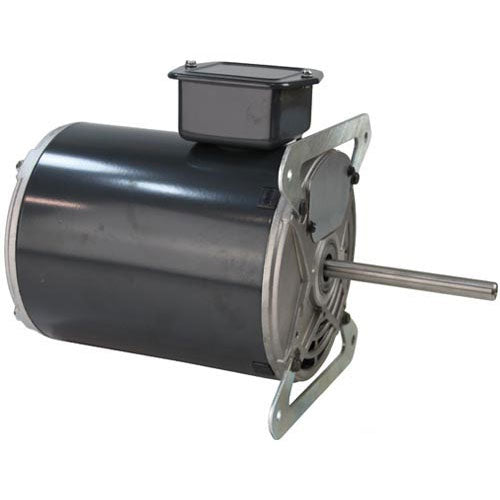

MOTOR 115V 0.5/0.14HP 2 SPEED REPLACEMENT MPN for Southbend 4440300

Product Description

This item for Southbend 4440300 is a motor with dual voltage options set at one hundred fifteen volts and horsepower ratings of point five and point fourteen. Suitable for various oven series, this motor operates at two speeds of one thousand seven hundred twenty-five and one thousand one hundred forty RPMs.

• Two-speed operation at one thousand seven hundred twenty-five RPM and one thousand one hundred forty RPM
• Compatible with Southbend oven series 300, 400, B, BBB, GB, GS, EH, P, SLGS
• Includes wiring instructions for single-speed use

Product Highlights

This motor is designed for efficient fan operation and features CW rotation from the rear. It is ideal for replacing old or malfunctioning motors in commercial ovens.

Product Information

Standard Information

• Voltage: 115V
• HP Rating: .5/.14HP

Technical Specifications

• RPM: 1725/1140
• AMP: 7.2/4.5
• Frame Size: 56Z
• Shaft Size: 1/2 x 4-1/2 inches
• Rotation: CW from rear
• Speed: Two-speed
• Wire Connections: White common; Black power to fan switch - high; Red power to fan switch - low
• Centifugal Switch: Wiring options provided
