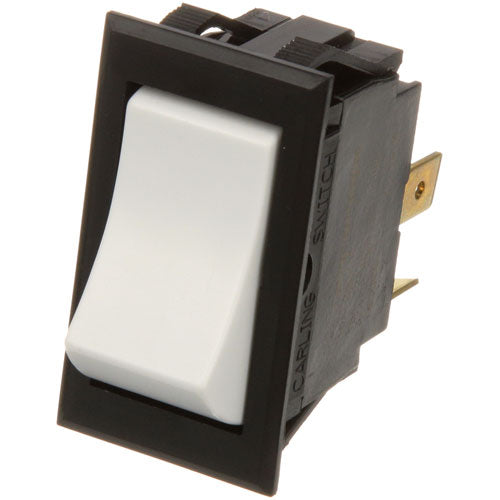

Rocker switch 10A/250V 15A/125V 1170343 for Southbend SOU1170343

Product Description

This item for Southbend with MPN 1170343 is a rocker switch designed for reliable operation in a variety of applications. It features a two-pole, single-throw (DPST) configuration and is capable of handling currents of up to ten amps at 250 volts and fifteen amps at 125 volts. The switch comes with a black frame and a white rocker, making it easy to identify. Installation requires a hole measuring seven-eighths of an inch by one and a half inches.

• DPST configuration
• Rated for 10A/250V and 15A/125V
• Fits 7/8 x 1-1/2 inch hole

Product Highlights

The rocker switch is suitable for various appliances, including Southbend griddles and similar equipment.

Product Information

Standard Information

• Product Notes: Rocker switch, DPST, ON/OFF; black frame with white rocker, 4ea 1/4 tab; fits 7/8 x 1-1/2 hole; fits Southbend griddle SG
• Hazardous: FALSE

Technical Specifications

• Weight: 0.05 lbs
• Length: 1.75 inches
• Width: 1 inch
• Height: 2 inches
• Dim Weight: 0.0625 lbs
