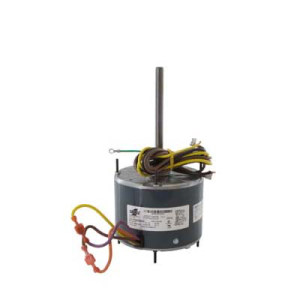

SOURCE1 FHM3727 Condenser Fan Motor - 1/6 HP - 208-230V - 1075 RPM

Product Description

The SOURCE1 FHM3727 is a condenser fan motor designed for air conditioning systems. This motor operates at 208-230 volts and delivers a speed of 1075 RPM. It features reversible rotation and is designed with a totally enclosed structure for protection. The motor includes automatic overload protection for added safety.

• Power: 1/6 HP
• Voltage: 208-230V
• Speed: 1075 RPM

Product Highlights

This fan motor is ideal for a variety of air conditioning units. It supports Rheem mounting with four drilled and tapped holes, making installation straightforward.

Product Information

Standard Information

• Brand: SOURCE1
• Horsepower: 1/6 HP

Technical Specifications

• Voltage: 208-230 Volts
• RPM: 1075
• Capacitor Type: Permanent Split Capacitor
• Speed: Single Speed
• Rotation: Reversible Rotation
• Enclosure: Totally Enclosed
• Overload: Automatic Overload
• Frame: 48 Frame
• Hertz: 60 Hertz
• Phase: Single Phase
• Mounting: Rheem Mounting
