SOURCE1 FHM3585 Direct Drive Blower Motor 115V 48 Frame

Product Description

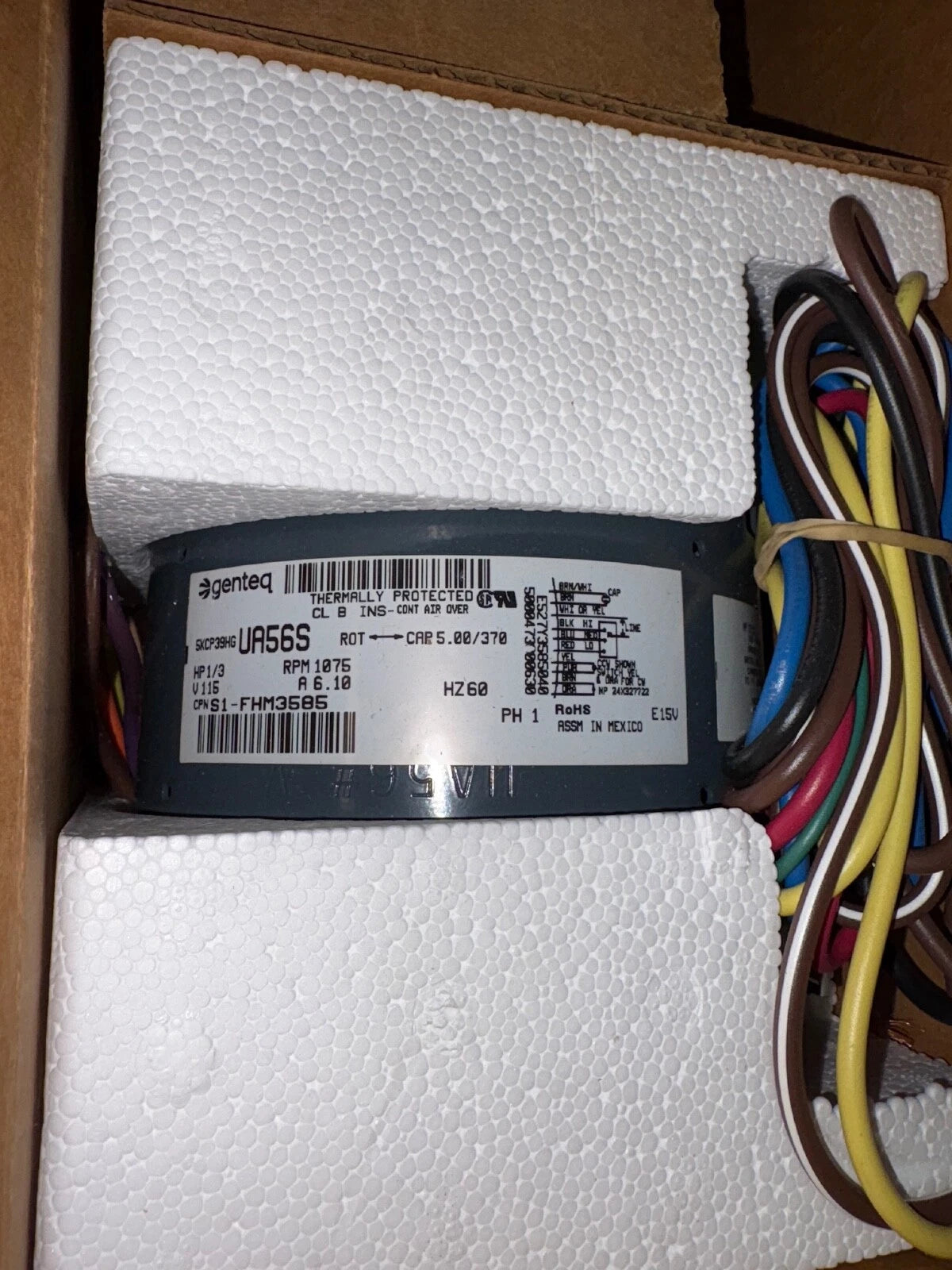

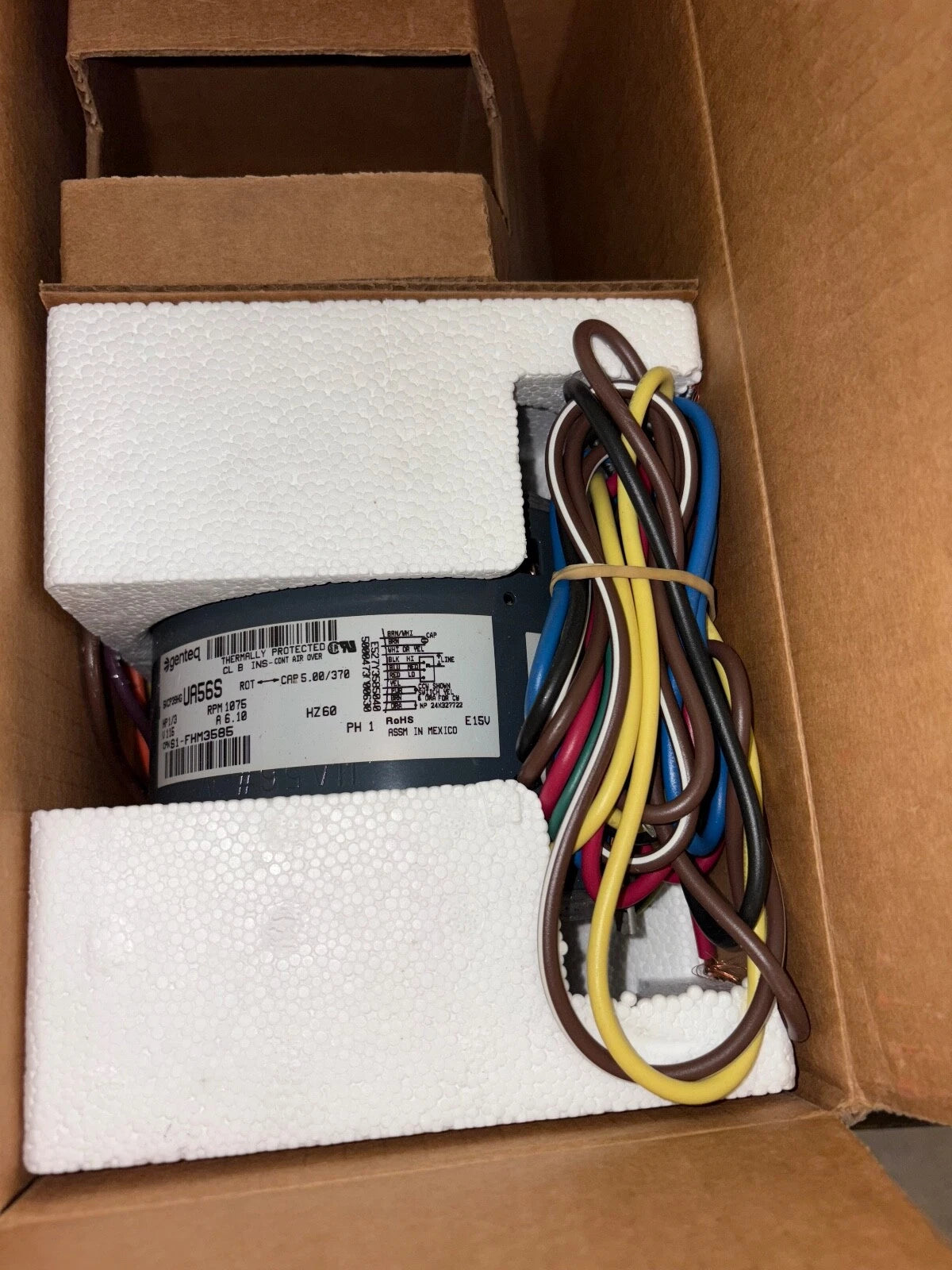

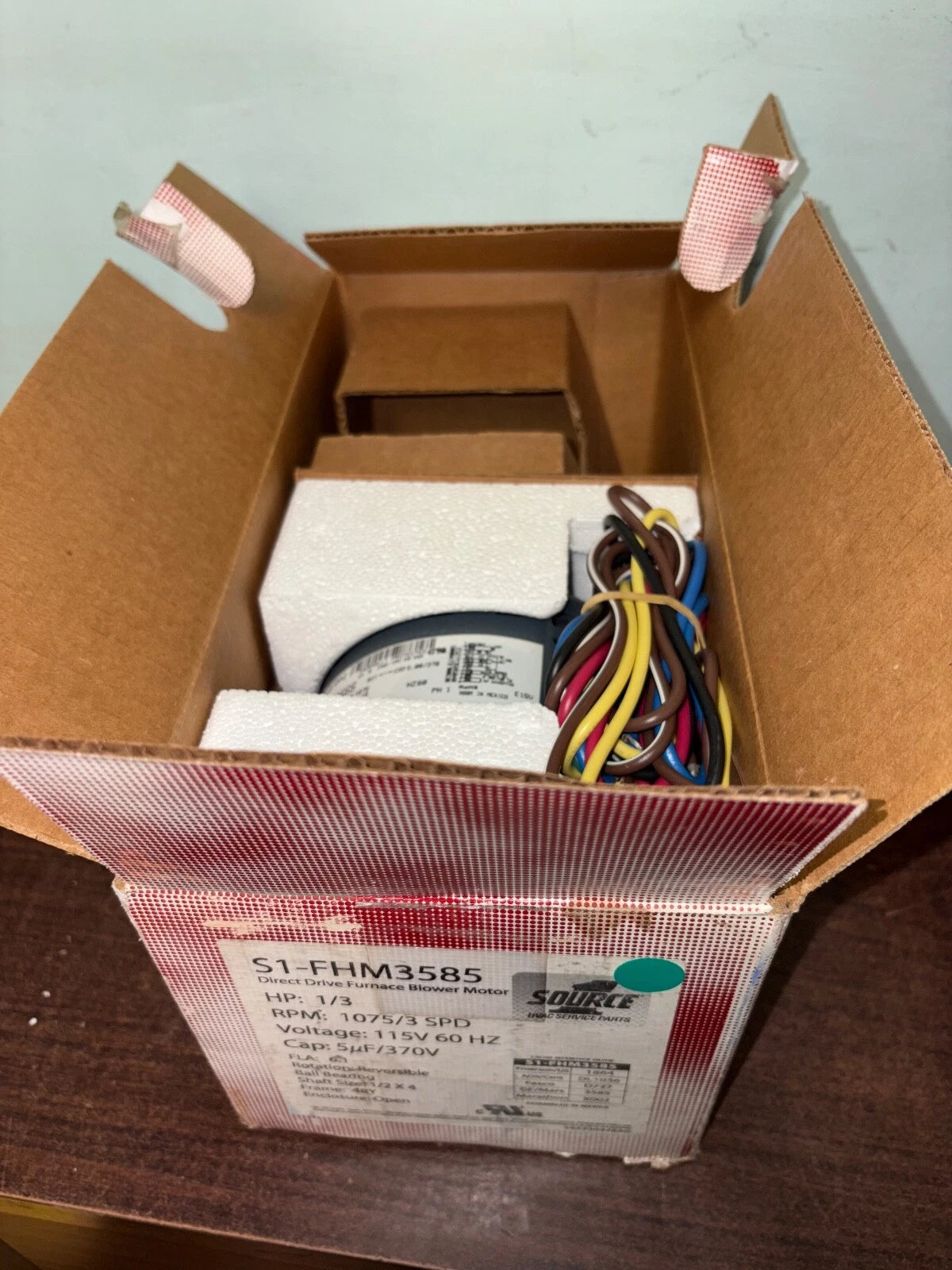

The SOURCE1 FHM3585 is a reliable 48-frame direct drive blower motor designed for continuous air-over applications. It is suitable for furnace blowers and central air handling units that require a single shaft. This motor features reversible rotation, automatic overload protection, and a permanent split capacitor design. The FHM3585 operates at 115 volts and has a speed of 1075 RPM. It comes with a diameter of five and five-eighths inches and a shaft extension of four and one-half inches. This unit is tailored for compatibility with a 370V capacitor.

• 48-frame construction
• Reversible motor rotation
• Automatic overload protection included

Product Highlights

This blower motor is ideal for maintaining airflow in various heating and cooling systems. Its robust design ensures longevity and reliability for HVAC applications.

Product Information

Standard Information

• Brand: SOURCE1
• MPN: FHM3585

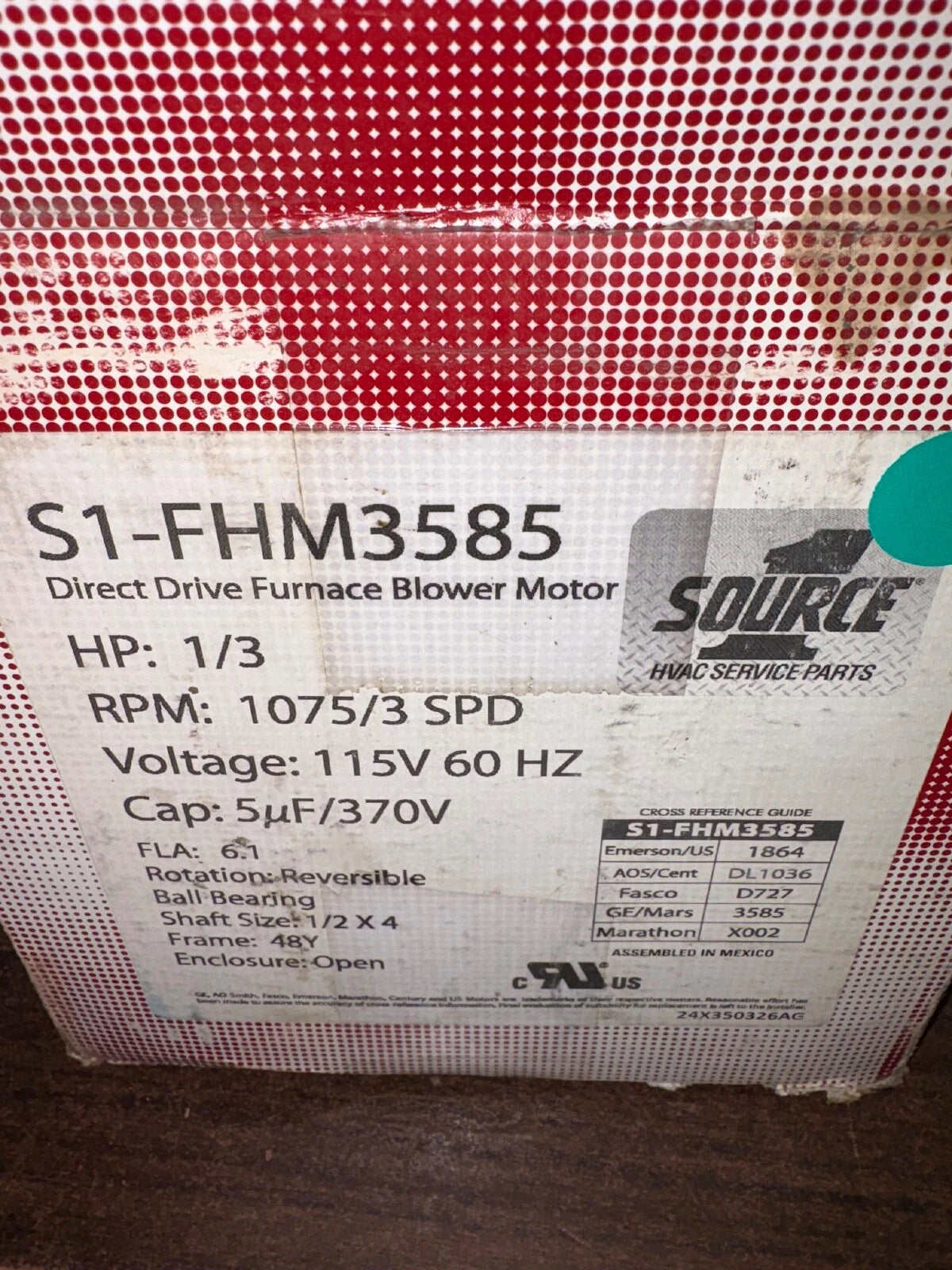

Technical Specifications

• Voltage: 115 V
• RPM: 1075
• Horsepower: 1/3
• Phase: Single
• Hertz: 60
• NEMA Frame: 48
• Motor Rotation: Reversible
• Overload Protection: Automatic
• Enclosure: Open
• Diameter: 5 5/8 inches
• Shaft Dimensions: 1/2 x 4 1/2 inches
• Speeds: 3
• Amperage: 6.00
• Ambient Temperature: 40°C
• Bearings: Sleeve
• Capacitor Required: 5MFD/370V
• Certifications: UL, CSA
• Country of Origin: China
• Insulation Class: B
• Length Less Shaft: 4 1/4 inches
• Material: Metal
• Motor Type: PSC
• Mounting Option: Mounting Kit
• Overall Length: 9.23 inches
• Service Factor: 1.00
• Includes: Mounting hardware included
