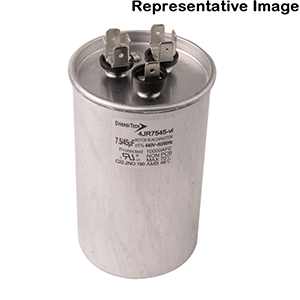

SOURCE1 dt-4jr7560u Dual Run Capacitor 60/7.5 Mfd 440V Round

Product Description

The SOURCE1 dt-4jr7560u is a dual run capacitor rated at 60/7.5 MFD and 440 volts AC, designed for use in residential and commercial HVAC systems. HVAC technicians rely on run capacitors to keep compressors and fan motors operating at peak efficiency. This round, oil-filled capacitor delivers steady electrical energy to both the compressor and the condenser fan motor simultaneously, which is why it carries two capacitance values in a single unit. The 60 MFD side supports the compressor, while the 7.5 MFD side supports the fan motor. Using a dual run capacitor instead of two separate single capacitors saves space in the electrical compartment and simplifies wiring during installation or replacement. The 440-volt AC rating provides a safety margin above the standard 370-volt systems found in most residential air conditioners and heat pumps, making this capacitor a reliable upgrade or direct replacement in a wide range of equipment. It operates at 60 Hz, which matches standard North American electrical systems. The quick connect terminals allow for fast, secure connections without soldering. A tolerance of 5 percent ensures consistent capacitance output across its service life. The temperature rating spans from -40 to 70 degrees Celsius, meaning it performs reliably in extreme cold during winter startups and in the high heat typical inside outdoor condensing units during summer. This capacitor is compatible with York, SOURCE1, and many other brand systems that require a 60/7.5 MFD dual run capacitor at 440 volts. It is a direct replacement part for failed or weakened capacitors causing hard starts, slow fan spin, or compressor shutdown faults.

• Dual run capacitor supports compressor and condenser fan motor in a single round unit
• 60/7.5 MFD capacitance at 440 volts AC with quick connect terminals for fast installation
• Oil-filled construction rated from -40 to 70 degrees Celsius for reliable year-round performance

Product Highlights

The SOURCE1 dt-4jr7560u dual run capacitor delivers 60/7.5 MFD at 440 volts AC in a compact round form, making it a straightforward replacement for HVAC systems requiring steady motor and compressor support.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: dt-4jr7560u

Technical Specifications

• Material: Oil Filled
• Voltage: 440 V AC
• Frequency: 60 Hz
• Capacitance: 60+7.5 uF
• Shape: Round
• Run/Start: Run
• Single/Dual: Dual
• Terminal Type: Quick Connect
• Tolerance: 5%
• Temperature Rating: -40 to 70 C
