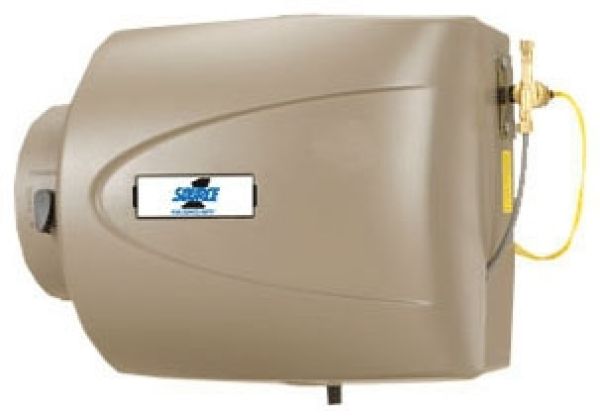

Source1 BP6000MT Large Bypass Humidifier

Product Description

The Source1 BP6000MT is a large bypass humidifier suitable for residential use. This humidifier integrates with existing HVAC systems using the system blower to circulate air and provide moisture. It operates on a twenty-four volt power supply and is capable of using water at a rate of three gallons per hour.

• Bypass diameter: six inches
• Voltage rating: twenty-four volts AC
• Plenum opening size: twelve and three-fourths inches height by ten inches width

Product Highlights

This humidifier is designed for thorough humidification throughout the home, enhancing comfort and air quality.

Product Information

Standard Information

• Manufacturer Part Number: S1-BP6000MT
• Brand: Source1

Technical Specifications

• Type: Large Bypass
• Application: Residential
• Capacity: seventeen gallons per hour
• Voltage Rating: twenty-four volts
• Frequency Rating: sixty Hertz
• Amperage Rating: zero point five amps
• Dimensions: fifteen and three-fourths inches height by fifteen and three-eighths inches width by ten and one-fourth inches depth
• Water Usage Rate: three gallons per hour
• Standards/Approvals: UL Listed
