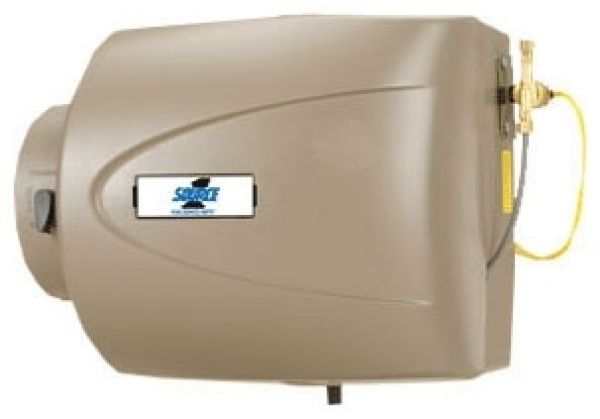

SOURCE1 BP5000MT Small Bypass Humidifier

Product Description

The SOURCE1 BP5000MT is a small bypass humidifier suitable for whole-home use with existing HVAC systems. It uses the HVAC system blower to evenly distribute humidity in smaller homes. This unit includes a manual humidistat for wall or duct mounting and is designed to maintain proper humidity levels effectively.

• Integrates seamlessly with existing HVAC systems.
• Features a kinetic-flo water distribution trough.
• Equipped with a manual humidistat for precise humidity control.

Product Highlights

The SOURCE1 BP5000MT ensures efficient humidity management for both small and large homes.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer: Johnson Controls

Technical Specifications

• Bypass Diameter: 6 inches
• Type: Small Bypass
• Capacity: 12 gallons per hour
• Voltage Rating: 24 V
• Frequency Rating: 60 Hz
• Amperage Rating: 0.5 A
• Plenum Opening: Yes
• Plenum Size: 9-1/2 inches H x 9-1/2 inches W
• Water Usage Rate: 3 gallons per hour
• Width: 15-5/8 inches
• Depth: 10-1/4 inches
• Dimensions: 13 inches H x 15-5/8 inches W x 10-1/4 inches D
• Standards/Approvals: UL Listed
• Application: Suitable for both small and large homes
