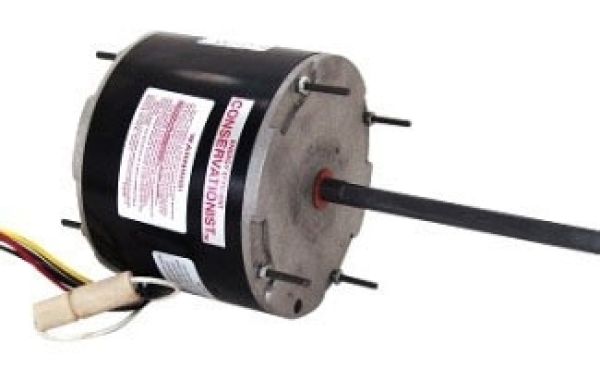

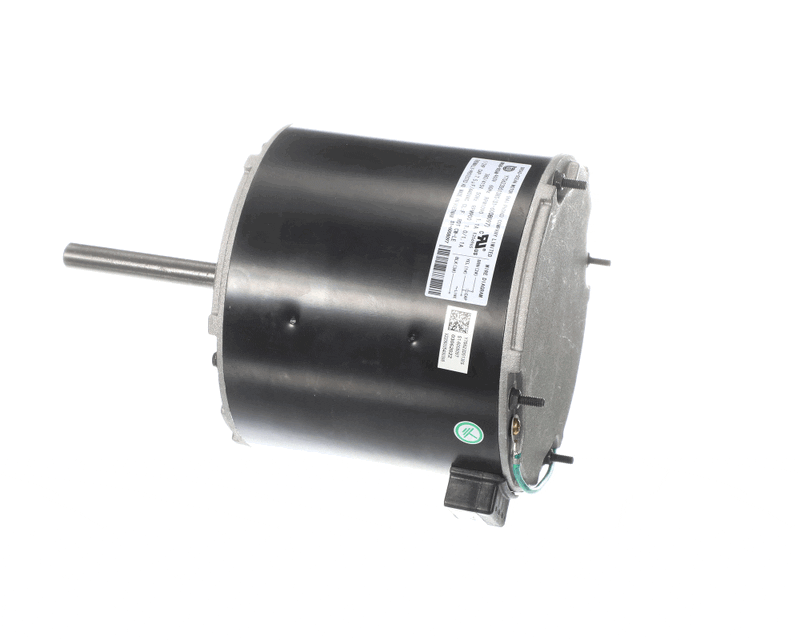

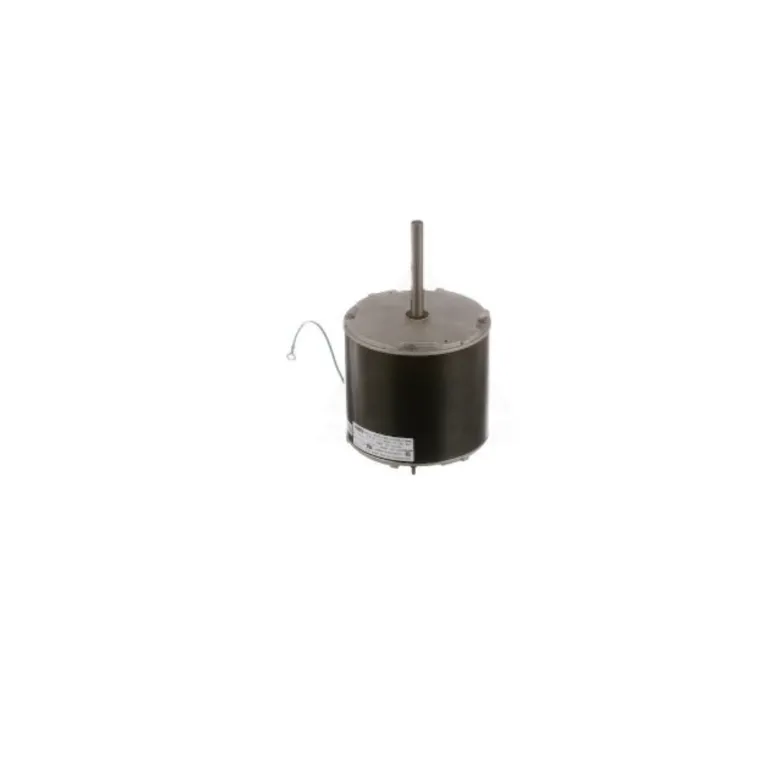

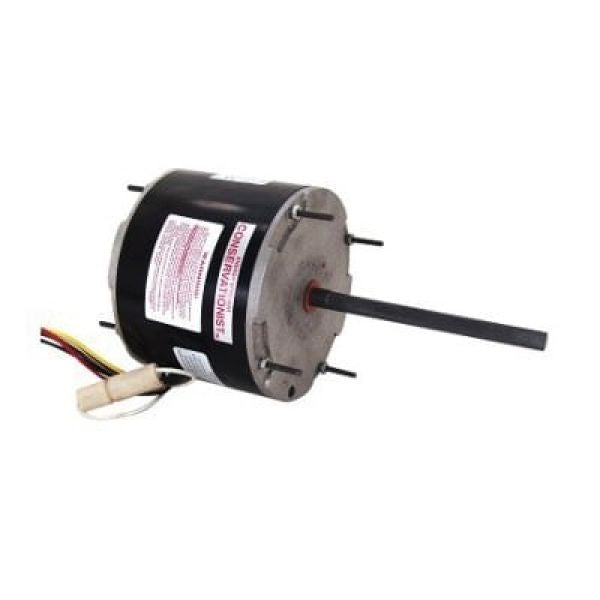

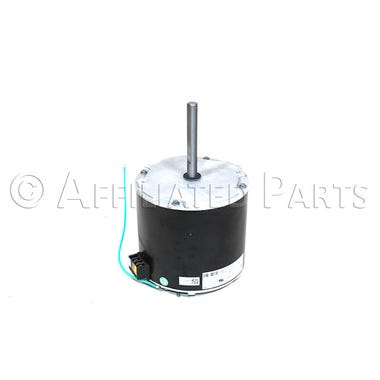

SOURCE1 6008097 Condenser Fan Motor 1/2 HP

Product Description

The SOURCE1 6008097 is a condenser fan motor, specifically made for HVAC systems. This motor operates at four hundred sixty volts and sixty hertz. It uses a single-phase power configuration to drive the fan, which blows air over the condenser coils. This process effectively dissipates heat. The motor is designed for clockwise rotation and is rated for one half horsepower.

• Operates at four hundred sixty volts and sixty hertz
• Features clockwise rotation
• Rated for one half horsepower with a speed of 1090 RPM

Product Highlights

This motor is essential for HVAC applications where reliable airflow is needed to manage condenser temperature.

Product Information

Standard Information

• Brand: Source 1
• Manufacturer: Johnson Controls

Technical Specifications

• MPN: 6008097
• Frequency: 60 Hz
• Horsepower: 1/2 hp
• Phase: 1
• RPM: 1090 RPM
• Voltage: 460V
• Rotation: Clockwise
• Motor Enclosure Type: Enclosed Air Over
• Bearing Type: Ball
• Enclosure Type: TEAO
• Frame Size: 48
• Nema Frame Size: 48
• Number Of Speeds: 1
