Source1 6008080 Condenser Fan Motor 3/4 Horsepower

Product Description

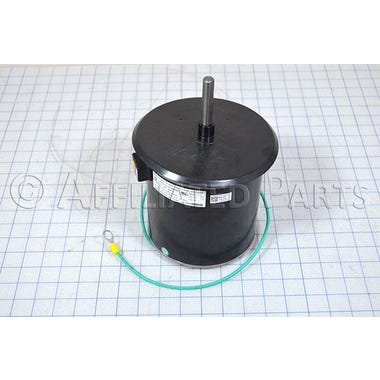

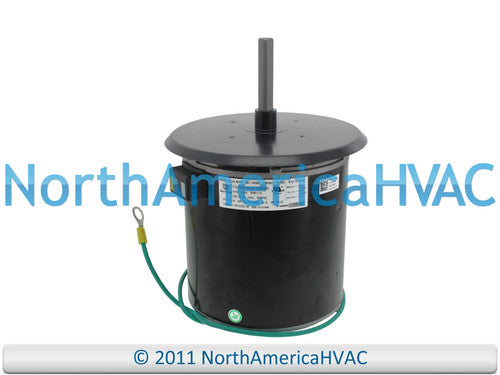

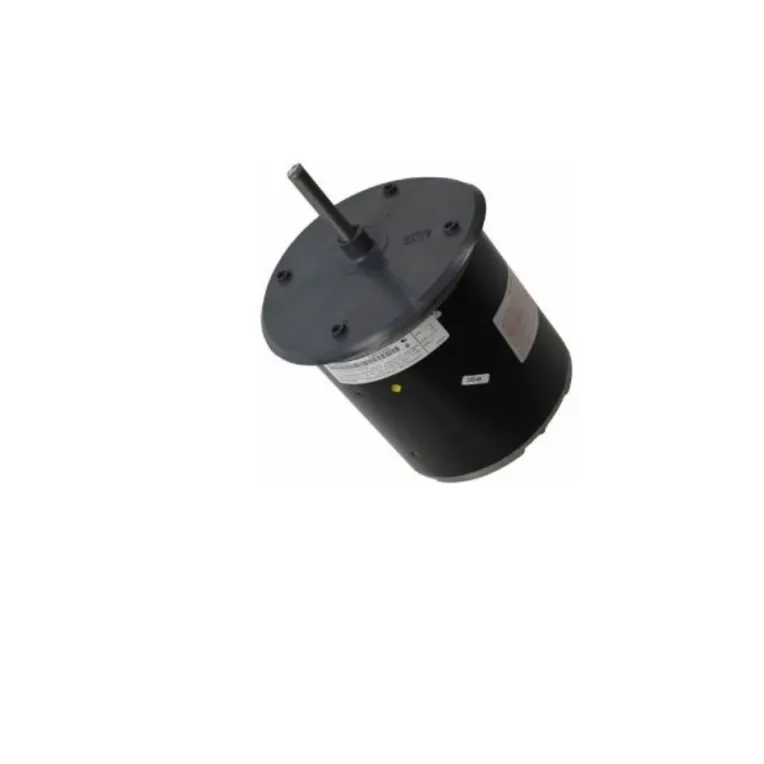

The Source1 S1-6008080 is a condenser fan motor designed for HVAC systems. It operates on 460V single-phase power and delivers 3/4 horsepower. This motor has a single speed, running at 1,110 RPM with clockwise lead end rotation. It features a 48Y NEMA frame, including a 1/2 inch diameter shaft that is three and a half inches long, along with a rain shield.

• Designed for use in Coleman and Evcon equipment.
• Ball bearing construction enhances durability.
• Open enclosure allows for cooling airflow.

Product Highlights

The Source1 S1-6008080 is built for reliability in HVAC applications, making it ideal for professionals seeking efficient condenser fan motors.

Product Information

Standard Information

• Brand: Source1
• MPN: 6008080

Technical Specifications

• Horsepower: 3/4
• Voltage: 460V
• Phase: Single
• RPM: 1110
• Full Load Amperage: 1.6
• Hertz: 60
• Frame Size: 48Y
• Rotation: Clockwise Lead End
• Number of Speeds: 1
• Shaft Diameter: 1/2 inch
• Shaft Length: 3.5 inches
• Weight: 17.00 lb
• Dimensions: 11.00 inches x 7.50 inches x 7.50 inches
• Bearing Type: Ball
• Enclosure: Open
