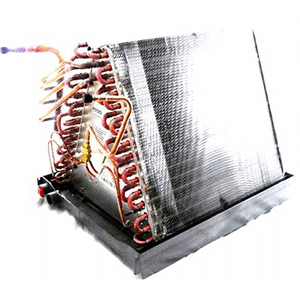

Source1 37348832001 Horizontal Depth Evaporator Coil 3 Row 20x17.5 Aluminum Flex

Product Description

The SOURCE1 37348832001 is a horizontal depth evaporator coil designed for residential and light commercial HVAC systems. This coil features a 3-row configuration with nominal face dimensions of 20 inches by 17.5 inches and is built with an aluminum flex construction. It is a direct OEM replacement part sourced through the York parts network under the Source1 brand, making it a reliable choice for technicians servicing York, Johnson Controls, and compatible equipment.

Evaporator coils are a core component of any split or packaged air conditioning or heat pump system. They sit inside the air handler or furnace cabinet and absorb heat from indoor air as refrigerant passes through the coil tubes. The result is cooled, conditioned air delivered throughout the building. A 3-row coil provides efficient heat transfer in a compact footprint, which is especially useful in retrofit or replacement scenarios where cabinet space is limited.

The aluminum flex construction offers a lightweight alternative to copper coil assemblies. Aluminum is resistant to formicary corrosion when properly maintained and is well suited for environments where refrigerant-grade tubing performance is needed at a competitive weight. The horizontal depth configuration means the coil is oriented to allow airflow to pass through the coil depth horizontally, which is standard for upflow and horizontal air handler installations.

HVAC technicians and mechanical contractors rely on OEM coil replacements like the 37348832001 to maintain system efficiency ratings, preserve manufacturer warranties, and ensure proper fit within existing equipment cabinets. Using the correct coil row count and face dimensions is critical to maintaining system static pressure and airflow design specifications.

• 3-row aluminum flex evaporator coil for horizontal depth orientation
• 20 inches by 17.5 inches face dimensions for compatible York and Source1 system cabinets
• OEM replacement part through the Source1 York parts distribution network

Product Highlights

The SOURCE1 37348832001 is a 3-row horizontal depth aluminum flex evaporator coil built to OEM specifications for York-compatible HVAC systems. It is a direct replacement designed for precise fit and reliable performance in residential and light commercial applications.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 37348832001

Technical Specifications

• Coil Configuration: 3 Row
• Face Width: 20 inches
• Face Height: 17.5 inches
• Coil Orientation: Horizontal Depth
• Construction Material: Aluminum Flex
