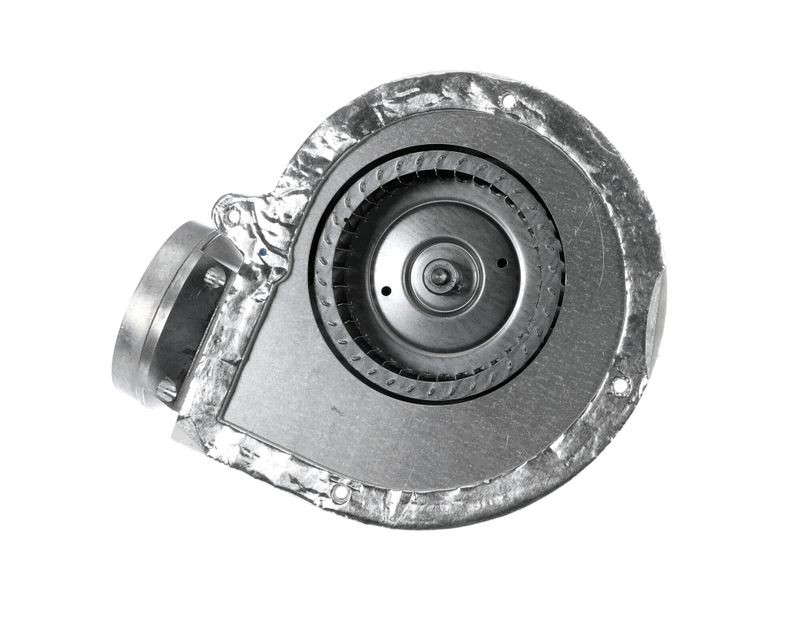

SOURCE1 2649696000 Combustion Blower Motor Assembly 115V 60hz 2750RPM 120-140 Btu

Product Description

The SOURCE1 2649696000 is a combustion blower and motor assembly designed for gas furnaces operating in the 120 to 140 BTU range. This OEM replacement part is built to York manufacturer specifications and is used by HVAC technicians to restore proper combustion airflow in residential and light commercial heating systems. The assembly runs on 115V at 60Hz and spins at 2750RPM, delivering the consistent motor speed required for reliable ignition and safe furnace operation.

A combustion blower motor assembly serves a critical role in a forced-air gas furnace. It draws air into the heat exchanger before the burners ignite, then exhausts combustion gases safely out of the flue. Without a properly functioning combustion blower, a furnace will not fire. Draft-proving switches detect blower operation, and if the motor fails or runs below spec, the furnace control board will lock out ignition entirely. Replacing a worn or failed combustion blower motor with a direct OEM replacement like the SOURCE1 2649696000 restores safe furnace operation quickly and correctly.

This assembly is compatible with popular York units including models 2EH04511046, 2EE04701024, and 2EE04706724, among others. Because it is a genuine OEM part produced under tight quality control standards, it meets York safety and reliability guidelines. HVAC service technicians can install this replacement with confidence that motor speed, mounting dimensions, and electrical ratings match the original equipment exactly. Using an OEM combustion blower assembly also supports proper draft pressure and helps the furnace pass safety inspections and warranty requirements.

• Direct OEM replacement combustion blower motor assembly for York furnaces rated 120 to 140 BTU
• Operates at 115V, 60Hz, and 2750RPM to match original factory performance specifications
• Compatible with York models 2EH04511046, 2EE04701024, 2EE04706724, and additional units

Product Highlights

The SOURCE1 2649696000 combustion blower motor assembly is a genuine OEM part built to York specifications, providing a reliable, code-compliant replacement for failed or worn combustion draft motors in 120 to 140 BTU gas furnaces.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2649696000

Technical Specifications

• Voltage: 115V
• Frequency: 60Hz
• Motor Speed: 2750 RPM
• BTU Range: 120 to 140 BTU
• Compatible Models: 2EH04511046, 2EE04701024, 2EE04706724
