Source1 2642600000 Fan Propeller 3 Blade 23 Inches 1/2 Inch Bore 32 Degree Pitch Ccw Replacement S1-02642600000

Product Description

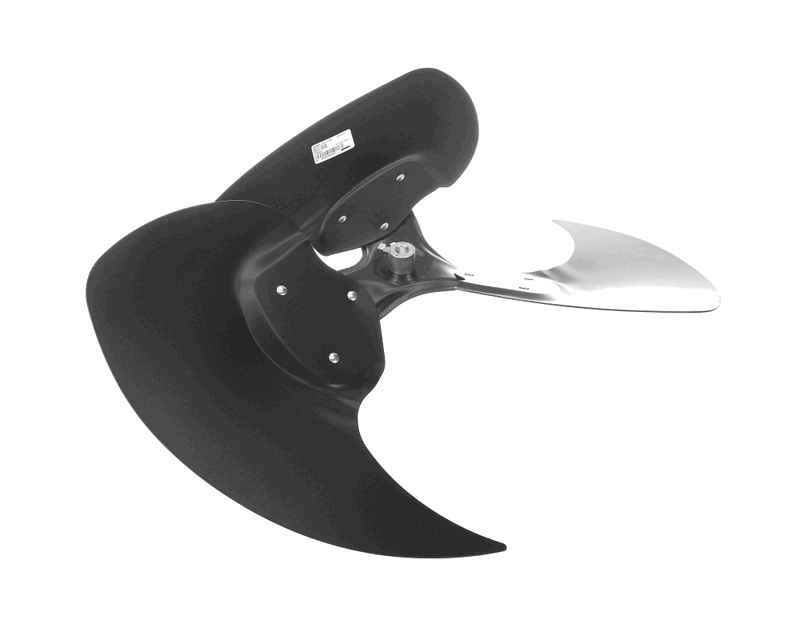

The Source1 2642600000 is a three-blade fan propeller designed for use in residential and light commercial HVAC condensing units. This OEM-quality replacement part measures 23 inches in diameter, features a 1/2 inch bore, and is pitched at 32 degrees for efficient airflow delivery. The counterclockwise (CCW) rotation matches the original equipment specification, making this a direct drop-in replacement that restores proper condenser fan performance without guesswork or modification. HVAC technicians rely on correctly matched fan propellers to maintain the heat transfer efficiency of outdoor condensing units. When a fan blade is cracked, bent, or out of balance, the entire refrigerant circuit suffers. Airflow across the condenser coil drops, head pressure rises, and the compressor is forced to work harder. Replacing a damaged propeller with the correct OEM-spec part like the 2642600000 restores system efficiency and protects the compressor from premature failure. This propeller is a known fit for York and Source1 condensing units including models TCHE36S44S1, TCHE48S43S1, and TCHE36S43S1. The three-blade design balances airflow volume with motor load, keeping amperage draw in check while moving adequate air mass across the coil. The 32-degree blade pitch is optimized for the fan motor and coil configuration found in these units, ensuring the correct static pressure and velocity profile. For HVAC service professionals performing seasonal maintenance, warranty repairs, or emergency replacements, having the correct propeller on hand reduces truck time and repeat visits. The Source1 2642600000 is built to OEM standards and provides reliable, long-term performance in the field.

• Three-blade propeller with 23 inch diameter for high-volume condenser airflow
• 1/2 inch bore and 32-degree blade pitch match original equipment specifications exactly
• Counterclockwise (CCW) rotation engineered for direct replacement in compatible York condensing units

Product Highlights

The Source1 2642600000 fan propeller delivers OEM-matched performance for York condensing units, restoring proper airflow and protecting the refrigerant circuit with a precise fit and correct blade geometry.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2642600000

Technical Specifications

• Product Type: Fan Propeller
• Diameter: 23 inches
• Number of Blades: 3
• Bore Size: 1/2 inch
• Blade Pitch: 32 degrees
• Rotation Direction: Counterclockwise (CCW)
• Compatible Models: TCHE36S44S1, TCHE48S43S1, TCHE36S43S1
