Source1 2642444000 Propeller Fan 17.5 Inches Cw 3-26 Half Inch Bore

Product Description

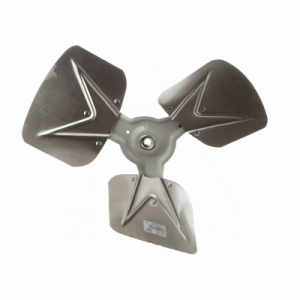

The Source1 2642444000 is a propeller fan designed for use in HVAC condensing units, heat pumps, rooftop package units, and similar air-moving equipment. This fan measures 17.5 inches in diameter and is built for clockwise rotation when viewed from the front of the blade. It features a 3-blade configuration with a 26-degree pitch angle and a half-inch bore to accept standard motor shafts found across a wide range of residential and light commercial HVAC systems. Propeller fans like this one are a core component in outdoor condensing units and air handlers where high-volume, low-static air movement is required. The blade pitch and diameter work together to move the correct volume of air across the condenser coil, helping the refrigerant cycle reject heat efficiently. An improperly matched fan blade can lead to poor system efficiency, compressor overheating, or premature equipment failure, making an exact replacement like the Source1 2642444000 critical for proper system performance. HVAC technicians rely on replacement propeller fans that match the original blade count, diameter, pitch, rotation direction, and bore size to ensure a drop-in fit without modifications. The clockwise rotation of this fan is an important specification to confirm before installation, as reversing blade rotation will dramatically reduce airflow and system efficiency. The half-inch bore is compatible with a broad range of condenser fan motors commonly used in the industry. This fan is a reliable, direct replacement part suitable for service technicians, HVAC contractors, and maintenance professionals handling condensing unit repairs or seasonal equipment servicing.

• 17.5-inch blade diameter for high-volume air movement in condensing unit applications
• Clockwise rotation with 3-blade, 26-degree pitch configuration for efficient airflow
• Half-inch bore for direct compatibility with standard condenser fan motor shafts

Product Highlights

The Source1 2642444000 propeller fan delivers precise airflow matching with its 17.5-inch diameter, clockwise rotation, and half-inch bore, making it a dependable direct replacement for HVAC condensing unit fan blades.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2642444000

Technical Specifications

• Fan Type: Propeller
• Blade Diameter: 17.5 inches
• Rotation Direction: Clockwise
• Number of Blades: 3
• Blade Pitch: 26 degrees
• Bore Size: 0.5 inches
