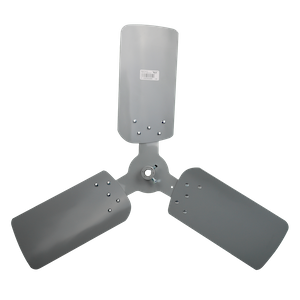

Source1 2625553000 Propeller Fan 30 Inches Clockwise 3-blade 21-degree 5/8 Inches Bore

Product Description

The Source1 2625553000 is a 30-inch propeller fan designed for commercial and residential HVAC applications. This fan moves large volumes of air through condenser units, cooling towers, and air-handling equipment. HVAC technicians and refrigeration mechanics rely on propeller fans like this one to keep heat transfer systems running efficiently. The 2625553000 spins in a clockwise direction when viewed from the front of the blade. Clockwise rotation is a common configuration in outdoor condenser units and rooftop equipment. Getting the correct rotation direction matters because reversing it reduces airflow and can overheat the refrigerant system. The fan features a 3-blade design set at a 21-degree pitch. Blade pitch controls how aggressively the fan bites into the air. A 21-degree pitch delivers a strong balance between airflow volume and motor load. This makes it a reliable choice for standard condenser and evaporator fan applications across a wide range of HVAC equipment. The 5/8-inch bore fits directly onto standard fan motor shafts used in many packaged units and split systems. A proper bore fit eliminates wobble, reduces vibration, and extends the life of both the fan and the motor bearings. The 30-inch blade diameter is suited for medium to large commercial condensers where high CFM output is required to reject heat from the refrigerant circuit. Replacement propeller fans must match the original in diameter, bore size, blade count, pitch angle, and rotation direction to restore factory performance. The Source1 2625553000 is a direct-replacement fan blade built to meet these specs with precision. HVAC service professionals stocking replacement condenser fan blades will find this unit a straightforward drop-in for compatible equipment.

• 30-inch propeller fan blade for HVAC condenser and air-handling applications
• Clockwise rotation with 3-blade, 21-degree pitch configuration for efficient airflow
• 5/8-inch bore for secure, vibration-free fit on standard motor shafts

Product Highlights

The Source1 2625553000 delivers reliable condenser fan performance with a 30-inch diameter, clockwise rotation, and a 5/8-inch bore that fits standard HVAC motor shafts. It is a direct-replacement propeller fan blade for medium to large commercial and residential cooling systems.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2625553000

Technical Specifications

• Fan Diameter: 30 inches
• Rotation Direction: Clockwise
• Number of Blades: 3
• Blade Pitch: 21 degrees
• Bore Size: 5/8 inches
