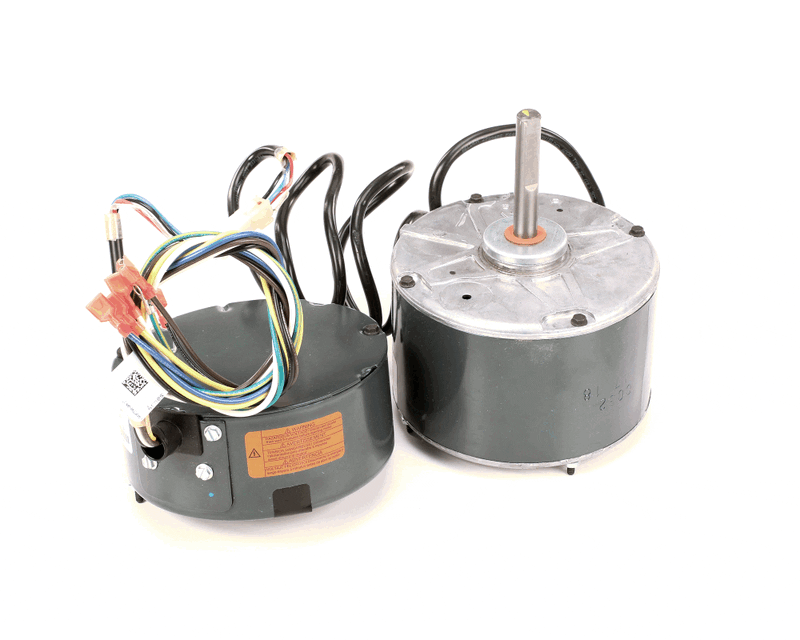

Source1 2546852000 Condenser Fan Motor with Control Module 230V 1/3HP 850/1100RPM Cweos

Product Description

The Source1 2546852000 is a condenser fan motor with an integrated control module designed for use in residential and light commercial air conditioning systems. This unit replaces the York S1-02546852000 and is built to OEM specifications for reliable, long-term performance in the field. The motor drives the fan blades mounted on the outdoor condenser unit, pulling or pushing air across the condenser coils to release the heat that the refrigerant absorbed from indoors. Without a properly functioning condenser fan motor, the refrigerant cannot shed heat efficiently, which leads to high head pressure, system shutdown, and compressor damage over time.

This motor operates on 230 volts at 60Hz or 50Hz and is single phase, making it compatible with standard residential HVAC electrical supply. It runs at dual speeds of 850 and 1100 RPM and is rated at 1/3 horsepower. The CWEOS designation means the shaft rotates clockwise when viewed from the end opposite the shaft, which is the standard orientation for many outdoor condenser fan assemblies. HVAC technicians should always verify shaft rotation direction before installation to ensure correct airflow through the coil.

The integrated control module simplifies wiring and allows the motor to communicate with the system control board, supporting variable speed or staged operation depending on the equipment it serves. This motor fits popular York and compatible models including XN060C00B2A1AAA1A2, XN060C00A2A1AAA1A2, and AHR30B3XH21, among others. Always cross-reference the full model list before ordering to confirm fitment. Weighing approximately 13 pounds and measuring 16.4 inches in length, 6.55 inches in width, and 6.5 inches in height, this motor is a direct OEM replacement that minimizes installation time and callbacks.

• Direct OEM replacement condenser fan motor for York and compatible systems
• Dual-speed operation at 850 and 1100 RPM with 1/3HP output on 230V single-phase power
• Integrated control module included for simplified wiring and system compatibility

Product Highlights

The Source1 2546852000 delivers OEM-grade reliability in a direct-replacement condenser fan motor with a built-in control module, supporting 230V single-phase operation at dual speeds. It is a trusted solution for HVAC technicians servicing York and compatible outdoor condensing units.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2546852000

Technical Specifications

• Voltage: 230V
• Frequency: 60/50Hz
• Phase: 1
• Horsepower: 1/3 HP
• RPM: 850/1100
• Rotation: Clockwise End Opposite Shaft (CWEOS)
• Product Type: Condenser Fan Motor with Control Module
• Length: 16.4 inches
• Width: 6.55 inches
• Height: 6.5 inches
• Weight: 13.045 pounds
