Source1 2440877000 Condenser Fan Motor 1/4 Hp 1100 Rpm Single Speed Clockwise 230V

Product Description

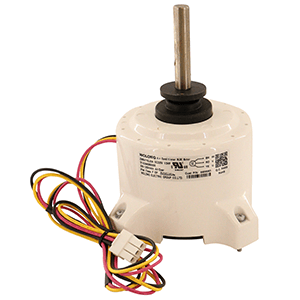

The Source1 2440877000 is a condenser fan motor built for reliable performance in residential and light commercial HVAC systems. This 1/4 horsepower motor runs at 1100 RPM on a single speed and is designed for clockwise rotation. It operates on a 230-volt, single-phase, 60 Hz power supply, making it a standard fit for a wide range of split-system air conditioners and heat pumps. HVAC technicians rely on condenser fan motors to keep the outdoor unit running efficiently. The condenser fan pulls air across the condenser coil, dissipating heat from the refrigerant so the system can complete the cooling cycle. When a condenser fan motor fails, the unit loses the ability to reject heat properly, leading to high head pressure, compressor strain, and system shutdown. Replacing the motor quickly with a direct or compatible unit like the Source1 2440877000 restores normal operation and protects the compressor from further damage. The clockwise rotation designation on this motor is important during installation. Viewing the motor shaft from the lead end, the shaft turns clockwise. Using the correct rotation direction ensures the fan blade moves air in the intended direction through the condenser coil. Installing a motor with the wrong rotation reduces airflow and system efficiency. This motor is suited for use in outdoor condenser units where heat rejection is critical during peak cooling season. HVAC service professionals, equipment installers, and maintenance technicians will find this motor a straightforward replacement for failed units in the field. The 230-volt single-phase rating matches common residential and light commercial power configurations across North America. Stocking this motor supports fast turnaround on condenser fan motor replacements during high-demand service periods.

• 1/4 HP condenser fan motor rated for 230-volt, single-phase, 60 Hz power supply
• Runs at 1100 RPM single speed with clockwise shaft rotation for correct condenser airflow
• Designed for outdoor condenser unit applications in residential and light commercial HVAC systems

Product Highlights

The Source1 2440877000 condenser fan motor delivers dependable 1/4 HP performance at 1100 RPM with clockwise rotation on a 230-volt single-phase circuit, making it a reliable replacement for failed condenser fan motors in split-system air conditioners and heat pumps.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2440877000

Technical Specifications

• Horsepower: 1/4 HP
• Speed: 1100 RPM
• Number of Speeds: 1
• Rotation Direction: Clockwise
• Voltage: 230V
• Phase: Single Phase
• Frequency: 60 Hz
• Application: Condenser Fan Motor
