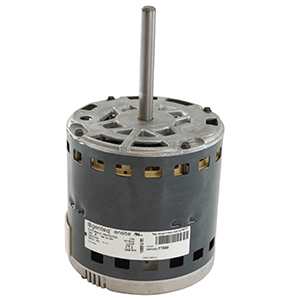

Source1 2439720000 Unprogrammed Ecm Blower Motor 1/3 Hp 1400 Rpm 115V

Product Description

The SOURCE1 2439720000 is an unprogrammed ECM blower motor rated at 1/3 horsepower, 1400 RPM, and 115 volts. ECM stands for electronically commutated motor. These motors use a built-in variable-speed controller that adjusts airflow based on system demand. That makes them far more efficient than standard PSC motors. HVAC technicians rely on ECM blower motors in residential and light commercial air handlers, furnaces, and fan coil units. The 2439720000 ships unprogrammed, meaning it requires configuration before installation. A compatible programmer or control interface is used to load the correct airflow profile for the specific unit being serviced. This gives service professionals full control over motor behavior and makes one motor adaptable to multiple applications. The 1/3 horsepower output is well suited for smaller air handler systems where moderate airflow is needed without excessive energy draw. The 1400 RPM top speed keeps operation smooth and quiet, which is important in residential installs. Running on standard 115 volt single-phase power, this motor fits into the most common residential electrical setups without the need for special wiring or phase converters. ECM blower motors in this class help homeowners and building managers save on energy costs because the motor ramps up and down rather than running at full speed continuously. For HVAC techs stocking replacement motors, having an unprogrammed ECM on hand means one part can cover a broader range of service calls. This motor is a direct choice for professionals replacing failed or failing ECM blower motors in existing systems. It is also a strong option for new equipment builds requiring a programmable, energy-efficient blower solution.

• Unprogrammed ECM motor allows custom airflow configuration for a wide range of HVAC applications
• 1/3 horsepower output and 1400 RPM speed suited for residential and light commercial air handler systems
• 115 volt single-phase operation compatible with standard residential electrical supply

Product Highlights

The SOURCE1 2439720000 unprogrammed ECM blower motor delivers energy-efficient, variable-speed airflow control for HVAC systems and gives technicians the flexibility to program the motor to match specific equipment requirements.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2439720000

Technical Specifications

• Motor Type: ECM (Electronically Commutated Motor)
• Horsepower: 1/3 hp
• Speed: 1400 RPM
• Voltage: 115V
• Programming: Unprogrammed
• Phase: Single-phase
• Application: Air handlers, furnaces, fan coil units
