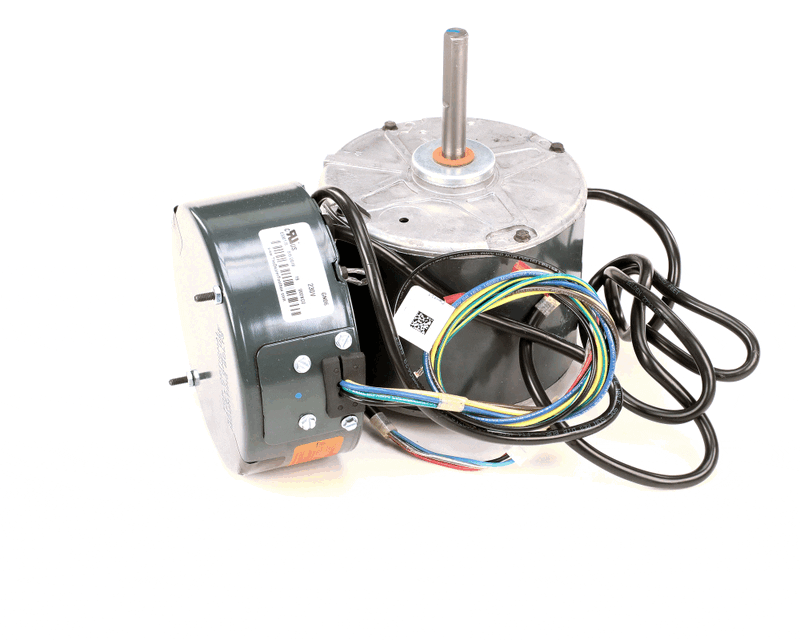

Source1 2436319000 Condenser Fan Motor 230V 1/2 Hp 1100 Rpm Ecm

Product Description

The SOURCE1 2436319000 is an electronically commutated condenser fan motor designed for commercial and residential HVAC systems. It runs on 230 volts and delivers 1/2 horsepower at 1100 RPM. This ECM motor replaces the OEM unit in select York equipment, including DBYZ-T030N045, DSV180B4M2VDA1A0D, and DSV180B4M2HDA1A0D models, among others. HVAC technicians rely on condenser fan motors to pull air across the condenser coil. This process removes heat from the refrigerant, allowing the system to complete the refrigeration cycle efficiently. When a condenser motor fails or runs below spec, head pressure rises and the system loses efficiency. Replacing it with an OEM-grade part restores proper airflow and protects the compressor from damage. The ECM design offers improved energy efficiency compared to standard PSC motors. ECM motors self-adjust motor speed to match system demands, reducing energy draw and heat buildup. This makes the 2436319000 a strong choice for technicians looking to maintain system performance while keeping energy costs in check. At 16.3 pounds, this is a substantial, full-frame motor built for continuous outdoor operation. Its dimensions measure 16.8 inches in length, 6.65 inches in width, and 6.5 inches in height, making it a direct-fit replacement for compatible York condenser units. Using genuine SOURCE1 OEM parts ensures that the motor meets the original manufacturer specifications for voltage, horsepower, and speed. This reduces callbacks, shortens installation time, and keeps equipment running reliably through peak cooling seasons. This motor is suited for commercial HVAC contractors, refrigeration technicians, and facilities maintenance teams working with York equipment.

• 230V ECM condenser fan motor rated at 1/2 HP and 1100 RPM
• Direct OEM replacement for compatible York condenser units including DBYZ-T030N045 and DSV180B4M2VDA1A0D models
• ECM technology improves energy efficiency and reduces wear compared to standard PSC motors

Product Highlights

The SOURCE1 2436319000 condenser fan motor is a factory-spec ECM replacement built for York HVAC systems. It restores correct airflow, protects the refrigeration cycle, and meets OEM voltage and speed requirements.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2436319000

Technical Specifications

• Voltage: 230V
• Horsepower: 1/2 HP
• RPM: 1100
• Motor Type: ECM
• Length: 16.8 inches
• Width: 6.65 inches
• Height: 6.5 inches
• Weight: 16.3 pounds
