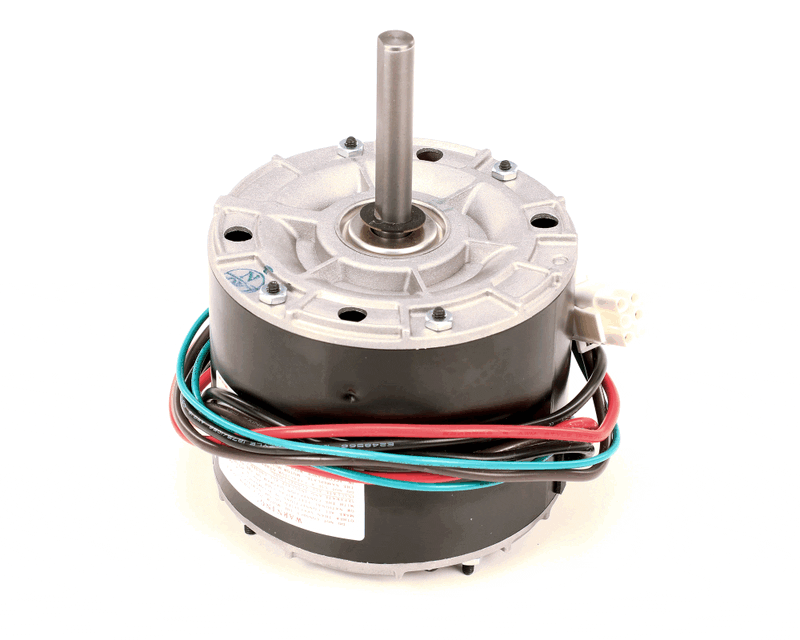

Source1 2436238000 Condenser Motor 208/230V 1/8 Hp 1075 Rpm Clockwise

Product Description

The Source1 2436238000 is a condenser fan motor designed for residential and light commercial HVAC systems. It operates on 208/230V power and delivers 1/8 horsepower at 1075 RPM. The motor runs in a clockwise direction when viewed from the lead end, which is a critical detail when selecting a direct replacement for existing equipment. This motor is built to move air across the condenser coil in split-system air conditioners and heat pumps. Proper airflow across the condenser coil allows the refrigerant to release heat efficiently, which keeps the system running at rated capacity and protects the compressor from high-pressure faults. HVAC technicians rely on quality condenser motors to restore system performance quickly and reduce callback risk. The Source1 2436238000 is sourced through York's parts network, making it a trusted choice for technicians servicing York, Johnson Controls, and compatible equipment. At 1075 RPM, this motor provides the slower, steady airflow typical of condenser fan applications, where high torque at startup and consistent speed under load are more important than high RPM. The 208/230V dual-voltage rating gives installers flexibility across different electrical supply configurations commonly found in commercial and residential settings. Whether you are replacing a failed condenser motor on a service call or stocking your truck with reliable parts, the Source1 2436238000 is a straightforward, dependable option. Its compact dimensions make it compatible with a wide range of condenser fan assemblies. Confirm rotation direction, horsepower, voltage, and RPM before installation to ensure a proper fit and safe operation.

• 208/230V dual-voltage rating supports a wide range of electrical supply configurations
• 1075 RPM speed with clockwise rotation from the lead end for correct condenser fan operation
• 1/8 HP output suited for residential and light commercial condenser fan applications

Product Highlights

The Source1 2436238000 condenser motor delivers reliable 1/8 HP performance at 1075 RPM on 208/230V power, making it a dependable direct replacement for York and compatible HVAC condensing unit fan motors.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2436238000

Technical Specifications

• Voltage: 208/230V
• Horsepower: 1/8 HP
• Speed: 1075 RPM
• Rotation: Clockwise from lead end
• Length: 10.4 inches
• Width: 6.5 inches
• Height: 6.2 inches
• Weight: 10.135 pounds
