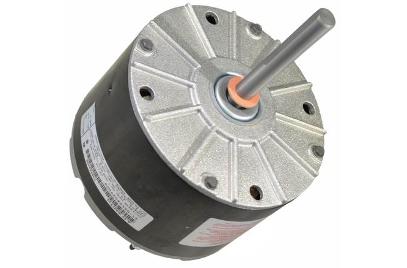

SOURCE1 2436232000 Fan Motor 1/12 Hp 850 Rpm 208/230V 48 Frame Cw Replaces A.o.s. F48F84A48

Product Description

The SOURCE1 2436232000 is a direct-drive fan motor built for reliable performance in residential and light commercial HVAC systems. Rated at 1/12 horsepower, this motor runs at 850 RPM on a single-phase circuit and operates on 208/230 volt power supplies. It features clockwise rotation and fits the standard 48 frame, making it a straightforward drop-in replacement for technicians working in the field. This motor serves as a compatible replacement for the A.O. Smith F48F84A48, giving HVAC professionals a dependable sourcing option when the original unit fails or needs to be swapped out during routine maintenance. Fan motors like this one are critical components in air handlers, condensing units, and evaporator coil assemblies. They drive the fan blade that moves air across the coil, maintaining proper airflow and system efficiency. When a fan motor fails, the entire system can overheat or lose cooling capacity, making fast and accurate replacement essential. The SOURCE1 2436232000 is designed to meet OEM specifications, so technicians can install it with confidence that it will perform to the same standards as the original equipment. The 48 frame designation refers to the National Electrical Manufacturers Association frame size, which standardizes the motor shaft height and mounting dimensions. This makes cross-referencing and installation straightforward for experienced HVAC technicians. Direct-drive motors like this one connect the motor shaft directly to the fan blade without a belt, reducing mechanical losses and simplifying maintenance. Whether you are servicing a rooftop unit, a split system air handler, or a package unit, this motor covers common residential and light commercial applications requiring a compact, low-horsepower direct-drive solution.

• 1/12 HP direct-drive fan motor rated for 208/230 volt single-phase power
• 850 RPM clockwise rotation, 48 frame for standard HVAC equipment fitment
• Compatible replacement for A.O. Smith F48F84A48 OEM fan motor

Product Highlights

The SOURCE1 2436232000 delivers OEM-matched performance in a 48 frame direct-drive design, making it a reliable replacement for HVAC fan motor applications requiring 1/12 HP at 850 RPM on 208/230 volt single-phase power.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2436232000

Technical Specifications

• Horsepower: 1/12 HP
• Motor Type: Direct Drive
• Speed: 850 RPM
• Phases: Single Phase
• Voltage: 208/230V
• Rotation: Clockwise
• Frame Size: 48 Frame
• OEM Cross Reference: A.O. Smith F48F84A48
• Shipping Weight: 8.40 pounds
• Shipping Width: 7.00 inches
• Shipping Length: 9.00 inches
• Shipping Height: 7.50 inches
