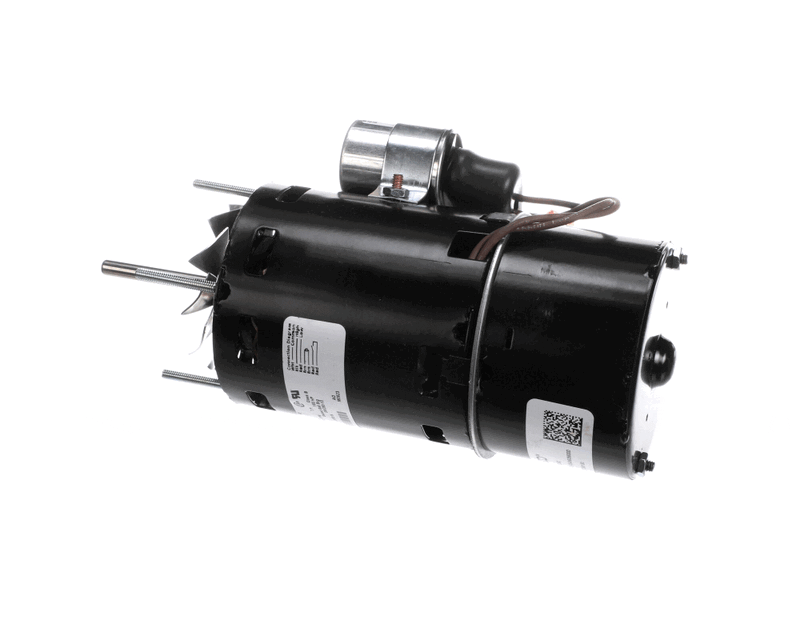

Source1 2436056000 Draft Inducer Blower Motor 230V 1/16HP 3000 Rpm Cw 1PH 60hz

Product Description

The Source1 2436056000 Draft Inducer Blower Motor is a direct OEM replacement motor designed for York heating and cooling systems. It plays a critical role in the startup sequence of a furnace or heat pump. Before ignition begins, this motor spins up to create a steady, controlled airflow through the heat exchanger and flue. This process clears out any residual gases and confirms proper venting before the burner fires. Without a functioning draft inducer motor, the control board will not allow the ignition sequence to proceed, making this part essential to safe and reliable system operation. HVAC technicians rely on OEM-grade replacement motors like this one to restore system function quickly and confidently. The Source1 2436056000 is rated at 230 volts and operates at 60Hz on a single phase power supply. It runs at 3000 RPM and spins in a clockwise direction. Output is rated at 1/16 horsepower, which is appropriate for the low-resistance airflow demands of an inducer application. This motor fits several popular York unit models including the BBUZ-F024A, BBUZ-W042A, and BBUP-W030A, among others. Because it is a genuine OEM part, it is engineered to the same tolerances and performance standards as the original motor it replaces. This helps maintain the quiet operation and smooth performance that the original manufacturer designed into the system. The motor measures 12.4 inches in length, 5.6 inches in width, and 3.6 inches in height. It weighs 6 pounds. These dimensions make direct fitment straightforward when swapping out a failed inducer motor in the field.

• Direct OEM replacement draft inducer blower motor for compatible York heat pump and furnace units
• Rated 230V, 60Hz, single phase, 3000 RPM, clockwise rotation, 1/16 horsepower output
• Fits BBUZ-F024A, BBUZ-W042A, BBUP-W030A, and additional compatible York models

Product Highlights

The Source1 2436056000 Draft Inducer Blower Motor is a genuine OEM component that restores safe pre-ignition airflow in compatible York heat pump systems. Its exact voltage, speed, and rotation specifications ensure a reliable, drop-in replacement with no modifications needed.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2436056000

Technical Specifications

• Voltage: 230V
• Frequency: 60Hz
• Horsepower: 1/16 HP
• Phases: 1PH
• RPM: 3000
• Rotation Direction: Clockwise
• Length: 12.4 inches
• Width: 5.6 inches
• Height: 3.6 inches
• Weight: 6 pounds
