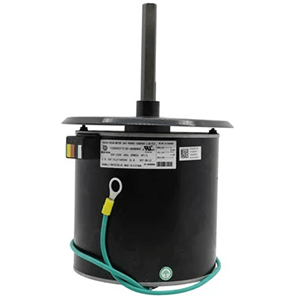

Source1 2432031002 Condenser Fan Motor 1/3 Hp 850 Rpm Ccw 460V Single Phase

Product Description

The Source1 2432031002 is a condenser fan motor built for commercial and residential HVAC systems that require reliable airflow across the condenser coil. This motor delivers 1/3 horsepower at 850 RPM, making it well-suited for outdoor condensing units where steady, lower-speed airflow is essential for efficient heat rejection. It runs on 460 volts, single phase, 60 Hz power, which is common in light commercial HVAC applications and multi-unit residential buildings. The motor features a counterclockwise rotation when viewed from the lead end, which is a critical specification to match when replacing an existing unit. Installing a motor with the wrong rotation direction will push air the wrong way through the coil, reducing system efficiency and potentially causing equipment damage. The 2432031002 uses a permanent split capacitor design, which is the standard motor type for condenser fan applications. PSC motors are known for smooth startup, quiet operation, and energy efficiency compared to shaded pole motors. They are a dependable choice for continuous-duty condenser fan service. The motor is built to NEMA 48 frame standards, which defines the mounting dimensions and shaft size, making it a direct fit for equipment requiring that frame designation. Open construction allows airflow through the motor housing to assist with cooling during operation. Ball bearings support the shaft and provide long service life with minimal maintenance. This motor is a practical replacement part for HVAC technicians servicing rooftop units, split systems, and packaged equipment that originally spec a 1/3 HP, 850 RPM, 460V condenser motor.

• 1/3 HP output at 850 RPM for consistent condenser coil airflow
• Counterclockwise rotation from lead end matches standard condenser fan configurations
• Permanent split capacitor design provides smooth operation and energy efficiency

Product Highlights

The Source1 2432031002 condenser fan motor provides a reliable, direct-replacement solution for 460V single-phase HVAC systems requiring a NEMA 48 frame, 1/3 HP motor with CCW rotation and ball bearing construction.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2432031002

Technical Specifications

• Horsepower: 1/3 HP
• Speed: 850 RPM
• Voltage: 460 VAC
• Phase: Single Phase
• Frequency: 60 Hz
• Number of Speeds: 1
• NEMA Frame: 48
• Bearing Type: Ball Bearing
• Rotation: Counterclockwise from Lead End
• Motor Type: Permanent Split Capacitor
• Enclosure: Open
