SOURCE1 2426044000 Blower Motor 3/4 Hp 1075 Rpm 3-speed Ccw 208/230V 1-phase 60hz

Product Description

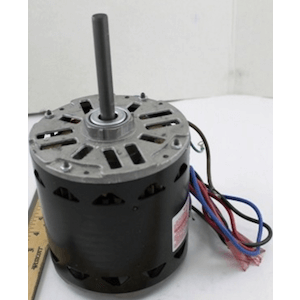

The SOURCE1 2426044000 is a 3/4 horsepower blower motor designed for residential and light commercial HVAC systems. It operates at 1075 RPM with three speed settings, giving technicians the flexibility to match airflow to the specific requirements of the system. The motor runs on 208/230 volt single-phase 60 Hz power, making it compatible with standard North American electrical supplies. The counterclockwise shaft rotation is an important specification that must match the original equipment design, and this unit is built to meet that requirement directly.

Blower motors like this one sit inside the air handler or furnace cabinet and drive the indoor blower wheel. The blower wheel moves conditioned air through the duct system and into the living or working space. When a blower motor fails, the system loses the ability to circulate air, which causes the unit to overheat, freeze up, or simply stop delivering comfort. Replacing the motor quickly with the correct part gets the system running again without unnecessary downtime.

HVAC technicians look for several key specs when sourcing a replacement blower motor: horsepower, RPM, voltage, phase, frequency, number of speeds, and shaft rotation direction. The SOURCE1 2426044000 covers all of these clearly. The 3/4 HP rating handles medium-to-large air handler applications. The three-speed capability lets the installer or control board select low, medium, or high airflow as needed for heating, cooling, or fan-only operation. Single-phase 60 Hz operation fits standard residential electrical service in the United States and Canada.

SOURCE1 is a parts brand built to support HVAC service professionals with reliable, spec-matched replacement components. This motor is well suited for service calls, planned maintenance, and equipment retrofits.

• 3/4 HP output with 1075 RPM operating speed for reliable airflow in residential and light commercial air handlers
• Three-speed operation allows low, medium, and high airflow selection to match system demand
• Counterclockwise shaft rotation and 208/230V single-phase 60Hz power supply for direct replacement compatibility

Product Highlights

The SOURCE1 2426044000 blower motor delivers 3/4 HP at 1075 RPM with three speeds and counterclockwise rotation, covering the core electrical and mechanical specs HVAC technicians need for a fast, accurate replacement in standard single-phase air handler applications.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2426044000

Technical Specifications

• Horsepower: 3/4 HP
• Motor Speed: 1075 RPM
• Number of Speeds: 3
• Shaft Rotation: Counterclockwise (CCW)
• Voltage: 208/230V
• Phase: 1-Phase
• Frequency: 60 Hz
• Application: Indoor Blower Motor, Air Handler, Furnace
