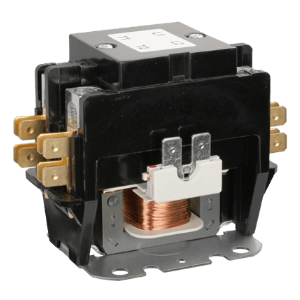

Source1 2425840700 Contactor 2 Pole Normally Open 40A 24V

Product Description

The Source1 2425840700 is a 2-pole normally open (2PNO) contactor rated at 40 amps and 24 volts, designed for use in residential and light commercial HVAC systems. Contactors are among the most critical electrical components in any air conditioning or heat pump system. They act as electrically controlled switches that connect and disconnect high-voltage power to the compressor and condenser fan motor. When the thermostat calls for cooling, the 24-volt control circuit energizes the contactor coil, which closes the contacts and allows line voltage to flow to the load. When demand is satisfied, the coil de-energizes and the contacts open, cutting power to the equipment. The Source1 2425840700 replacement contactor fits a wide range of York, Coleman, and Luxaire equipment including models such as the D6NZ060D09006NX, DDYZ-F060N135, and FC60C3XN1 among others. Using a genuine OEM or OEM-equivalent replacement contactor ensures compatibility with the original wiring harness and mounting bracket, reducing installation time in the field. A worn or pitted contactor is one of the most common causes of compressor no-start conditions, hard-start faults, and nuisance tripping. Replacing a contactor proactively during a maintenance visit or at first sign of pitting or coil failure can prevent costly compressor replacements down the line. The 40-amp rating provides adequate capacity for the compressor loads found in mid-range residential and light commercial condensing units. The 24-volt coil voltage is the industry-standard control voltage used in virtually all split-system air conditioners and heat pumps. This contactor measures 3.5 inches in length, 2.75 inches in width, and 2.35 inches in height, and weighs 0.56 pounds, making it compact and easy to handle in tight electrical panels and condenser cabinets. HVAC technicians, refrigeration mechanics, and service contractors will find this a straightforward drop-in replacement for failed or degraded contactors in the field.

• 2-pole normally open (2PNO) configuration rated for 40 amps at 24 volts
• Compatible with York, Coleman, and Luxaire condensing units including D6NZ060D09006NX, DDYZ-F060N135, and FC60C3XN1
• Compact dimensions of 3.5 inches by 2.75 inches by 2.35 inches for easy installation in tight condenser enclosures

Product Highlights

The Source1 2425840700 contactor delivers a reliable OEM-equivalent replacement for 40-amp 24-volt applications across a wide range of York-platform HVAC equipment, helping technicians restore system operation quickly and confidently.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2425840700

Technical Specifications

• Configuration: 2 Pole Normally Open (2PNO)
• Amperage: 40A
• Coil Voltage: 24V
• Length: 3.5 inches
• Width: 2.75 inches
• Height: 2.35 inches
• Weight: 0.56 pounds
