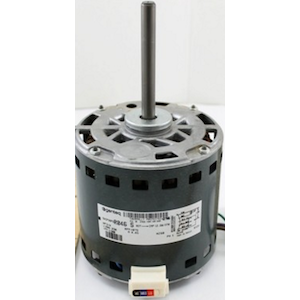

Source1 2425371700 Blower Motor 3/4 Hp 1075 Rpm 3-speed 208/230V Cw Rotation Psc 48 Frame

Product Description

The Source1 2425371700 is a 3/4 horsepower PSC blower motor designed for use in residential and light commercial HVAC systems. PSC stands for Permanent Split Capacitor, a motor type widely used in forced-air furnaces, air handlers, and fan coil units. This motor runs on 208/230 volt single-phase 60 Hz power, making it compatible with standard residential and commercial electrical supplies across North America. It operates at 1075 RPM and offers 3 speeds, giving HVAC technicians the flexibility to match airflow to the specific requirements of the system being serviced. The motor uses a 48 NEMA frame, which is one of the most common frame sizes in residential HVAC equipment. This standardized frame makes direct replacement straightforward on a wide range of furnace and air handler platforms. Rotation is clockwise when viewed from the lead end, an important detail for ensuring proper airflow direction through the blower wheel and duct system. The open construction allows for air cooling of the motor during operation, which is a typical design for blower motors installed inside the air stream of an air handling unit. Sleeve bearings provide quiet operation and are well suited to the horizontal or vertical shaft orientations found in most residential blower assemblies. HVAC technicians replacing a failed or underperforming blower motor should verify horsepower, voltage, RPM, frame size, rotation, and bearing type before installation to ensure a proper fit. The Source1 2425371700 covers all of these key parameters and is built to meet the demands of professional HVAC service work. This motor is a reliable choice for field replacement of OEM blower motors in furnaces, air handlers, and fan coil applications.

• 3/4 HP Permanent Split Capacitor motor rated for 208/230 volt single-phase 60 Hz electrical systems
• 1075 RPM with 3 speed settings for flexible airflow adjustment in furnace and air handler applications
• 48 NEMA frame with clockwise lead-end rotation and open sleeve bearing construction for quiet, reliable operation

Product Highlights

The Source1 2425371700 blower motor delivers dependable 3/4 HP performance in a standard 48 NEMA frame with 3-speed operation, making it a practical direct replacement for HVAC blower assemblies in residential and light commercial systems.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2425371700

Technical Specifications

• Horsepower: 3/4 HP
• Voltage: 208/230 VAC
• Phase: Single Phase
• Frequency: 60 Hz
• Speed: 1075 RPM
• Number of Speeds: 3
• Frame Size: 48 NEMA
• Rotation: Clockwise, Lead End
• Motor Type: Permanent Split Capacitor (PSC)
• Enclosure Type: Open
• Bearing Type: Sleeve
