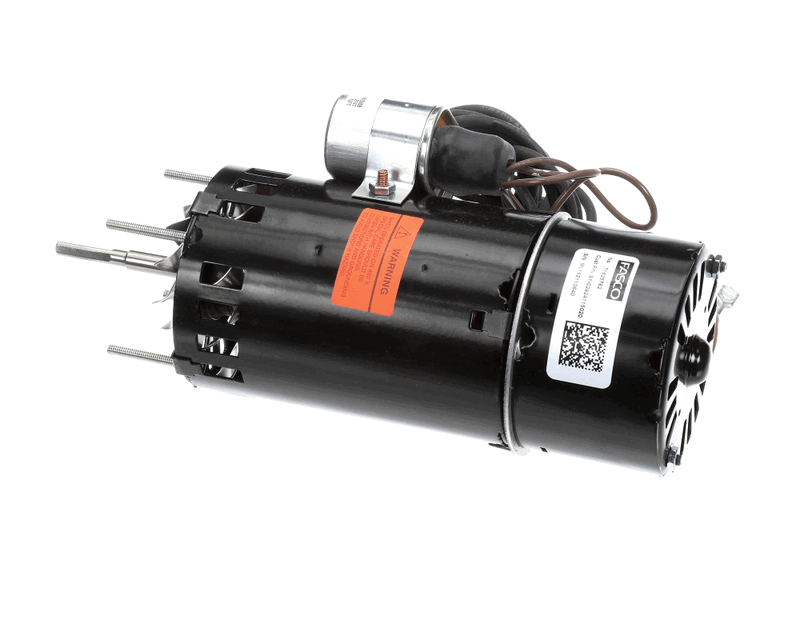

Source1 2424115020 Draft Inducer Motor 460V 60hz 1ph 3400RPM 1/20HP Clockwise

Product Description

The SOURCE1 2424115020 is a draft inducer motor designed for use in residential and light commercial HVAC heating systems. This motor drives the draft inducer fan, which pulls combustion gases through the heat exchanger and exhausts them safely out of the flue. By maintaining a consistent and controlled airflow through the unit, the motor helps prevent backdrafting of harmful combustion gases into the living space. This is a critical safety and performance function in gas-fired furnaces and heat pump systems. HVAC technicians rely on properly matched inducer motors to keep systems running within manufacturer specifications and to satisfy safety codes.

This motor is rated at 460 volts, 60Hz, single phase, and operates at 3400 RPM with a 1/20 horsepower output. The clockwise rotation direction is essential to match during replacement to ensure the inducer fan moves air in the correct direction. Using the wrong rotation direction will cause the motor to fail to exhaust combustion gases properly, which is both a performance issue and a safety hazard. This SOURCE1 motor is a genuine OEM-grade component that has been tested to meet the performance, safety, and reliability standards set by the original equipment manufacturer.

This part is a direct-fit replacement for popular York units including B1HN090N13046C, B1HN090N13046A, and B1HN090N13046B, among others. HVAC service professionals working on York heating equipment will find this motor a reliable drop-in solution for draft inducer motor failures. Symptoms that indicate a failed draft inducer motor include the furnace not starting, a loud humming or grinding noise from the inducer assembly, or a pressure switch fault code. Replacing the inducer motor with the correct OEM-spec part restores proper function quickly and reduces callback risk.

• Rated at 460V, 60Hz, single phase for compatibility with commercial-grade HVAC power supplies
• Clockwise rotation at 3400 RPM matches original inducer fan assembly specifications
• Direct OEM-grade replacement compatible with York B1HN090N13046 series units and more

Product Highlights

The SOURCE1 2424115020 draft inducer motor is a precision-matched replacement for York heating systems, delivering the correct voltage, speed, and rotation direction needed for safe combustion venting. It meets OEM performance and safety standards for dependable field installation.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2424115020

Technical Specifications

• Voltage: 460V
• Frequency: 60Hz
• Phase: Single Phase
• RPM: 3400
• Horsepower: 1/20 HP
• Rotation Direction: Clockwise
• Length: 19.4 inches
• Width: 14.35 inches
• Height: 4.65 inches
• Weight: 5.535 pounds
