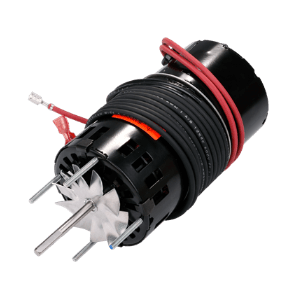

Source1 2424115019 Ventilator Motor 1/40 Hp 3200 Rpm Single Phase 460V Cw Rotation

Product Description

The Source1 2424115019 is a ventilator motor designed for HVAC applications where reliable, low-horsepower air movement is required. This motor operates at 1/40 horsepower and spins at 3200 RPM, making it well suited for ventilation fans, exhaust units, and fresh air handlers found in commercial and residential HVAC systems. It runs on a single-phase, 460-volt, 60-hertz power supply, which is common in light commercial electrical setups across North America. The clockwise rotation matches the standard drive configuration used in many OEM ventilator assemblies.

HVAC technicians rely on motors like the Source1 2424115019 when servicing or replacing worn ventilator components. A ventilator motor drives the fan blade or blower wheel that moves air through the system. When a motor fails, airflow drops, indoor air quality suffers, and the connected HVAC equipment can overheat or short-cycle. Swapping in a direct replacement motor quickly restores system performance and avoids costly downtime on a job site.

The 3200 RPM speed puts this motor in the high-speed category for small fractional horsepower units. High RPM combined with low horsepower means efficient air movement without drawing heavy current. The 460-volt single-phase rating means this motor is built for circuits where standard residential 120 or 240-volt supply is stepped up for commercial panel configurations. Always confirm voltage and phase match before installation.

Source1 is a trusted OEM-grade parts brand used by professional HVAC contractors and service technicians. Parts like the 2424115019 are stocked for fast turnaround on service calls. Confirm rotation direction, voltage, horsepower, and RPM against the original equipment specifications before ordering.

• 1/40 HP fractional ventilator motor rated for 460-volt single-phase 60-hertz power supplies
• 3200 RPM high-speed output for efficient ventilation fan and exhaust unit operation
• Clockwise rotation matches OEM ventilator drive configurations for direct replacement installs

Product Highlights

The Source1 2424115019 ventilator motor delivers reliable 3200 RPM performance at 1/40 HP on a 460-volt single-phase circuit. It is a direct-fit replacement motor for HVAC ventilation applications requiring clockwise rotation.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2424115019

Technical Specifications

• Horsepower: 1/40 HP
• Motor Speed: 3200 RPM
• Rotation: Clockwise (CW)
• Voltage: 460 Volts
• Phase: Single Phase
• Frequency: 60 Hz
• Application: Ventilator Motor
