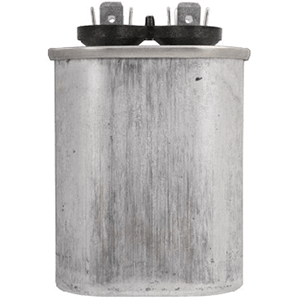

Source1 2420063700 Single Run Capacitor 7.5 Mfd 440V Oval

Product Description

The Source1 2420063700 is a single run capacitor rated at 7.5 MFD and 440 volts, designed for use in HVAC systems including central air conditioners, heat pumps, and air handlers. Run capacitors play a critical role in motor operation. They stay in the circuit continuously while the motor runs, providing the phase shift needed to keep the motor turning smoothly and efficiently. Without a functioning run capacitor, the motor draws excessive current, runs hot, and can fail prematurely. This oval-style capacitor is a common replacement component used by HVAC technicians during routine maintenance and service calls. The 7.5 MFD rating makes it suitable for smaller single-phase motors, such as condenser fan motors found in residential and light commercial cooling equipment. The 440-volt rating gives it voltage headroom above standard 370-volt applications, which helps extend service life and makes it compatible with a wider range of equipment. HVAC technicians and service professionals keep capacitors like the Source1 2420063700 on hand because capacitor failure is one of the most common causes of cooling system breakdowns, especially during peak summer heat. Swapping out a failed run capacitor is a fast, cost-effective repair that restores normal system operation. The oval form factor fits easily into standard capacitor brackets in most equipment cabinets. Always verify the MFD rating and voltage rating match the equipment nameplate before installation. Replacing a capacitor with the correct specifications ensures safe, reliable motor performance and protects the connected motor windings from damage caused by improper capacitance.

• Single run capacitor rated at 7.5 MFD for precise motor phase support
• 440-volt rating provides compatibility with a wide range of single-phase HVAC motors
• Oval form factor fits standard capacitor mounting brackets in residential and light commercial equipment

Product Highlights

The Source1 2420063700 single run capacitor delivers reliable motor support for condenser fan motors and other single-phase HVAC loads. Its 440-volt, 7.5 MFD rating makes it a dependable replacement option for technicians servicing air conditioners and heat pumps.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2420063700

Technical Specifications

• Capacitor Type: Single Run
• Capacitance: 7.5 MFD
• Voltage Rating: 440V
• Shape: Oval
