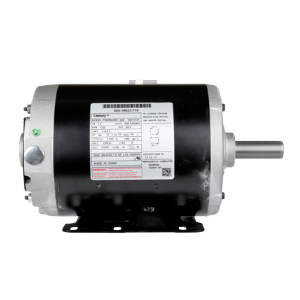

Source1 2419623718 Blower Motor 1.5 Hp 1725 Rpm Three Phase 208-230 460V 56 Frame

Product Description

The Source1 2419623718 is a 1.5 horsepower three-phase blower motor built for commercial and light industrial HVAC air handling applications. It operates at 1725 RPM and is rated for use on 208-230 volt or 460 volt three-phase power at 60 Hz or 50 Hz. This makes it a flexible choice for a wide range of rooftop units, air handlers, and fan coil systems where three-phase power is available. The motor is mounted in a NEMA 56 frame, which is a standard frame size widely used in commercial HVAC equipment and easy to match to existing mounting configurations. The open drip proof enclosure allows air to circulate through the motor for cooling while protecting internal components from dripping liquids falling at angles up to 15 degrees from vertical. This enclosure type is well suited for indoor mechanical rooms and equipment rooms where the motor is sheltered from direct weather exposure. Ball bearings provide reliable, low-maintenance operation and support the continuous duty cycles common in commercial air handling systems. Three-phase motors like the Source1 2419623718 are preferred in commercial settings because they run more efficiently and with less vibration than single-phase motors of the same horsepower, resulting in longer service life and lower operating costs. HVAC technicians and mechanical contractors replacing worn or failed blower motors on commercial air handling units will find this motor a direct fit where a NEMA 56 frame, 1.5 HP, three-phase motor is specified. The single-speed design keeps wiring and controls straightforward. With dual voltage capability covering both 208-230 volt and 460 volt three-phase systems, this motor covers a broad range of commercial electrical service configurations without requiring a separate motor for each voltage level.

• 1.5 HP three-phase blower motor rated at 1725 RPM for commercial HVAC air handling systems
• Dual voltage design accepts 208-230V or 460V three-phase power at 60 Hz or 50 Hz
• NEMA 56 frame with open drip proof enclosure and ball bearings for reliable, long-service operation

Product Highlights

The Source1 2419623718 delivers 1.5 HP of three-phase blower motor performance in a standard NEMA 56 frame with dual voltage compatibility, making it a practical replacement motor for a wide range of commercial HVAC air handling units.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2419623718

Technical Specifications

• Horsepower: 1.5 HP
• Speed: 1725 RPM
• Phase: Three Phase
• Voltage: 208-230 / 460 Volts
• Frequency: 60 Hz / 50 Hz
• Number of Speeds: 1
• Frame Size: NEMA 56
• Enclosure Type: Open Drip Proof
• Bearing Type: Ball Bearing
• Motor Type: Blower Motor
