Source1 1CT0302 2 Concentric Vent Terminal Kit

Product Description

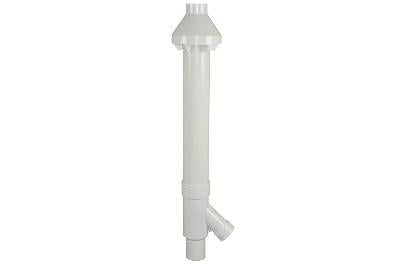

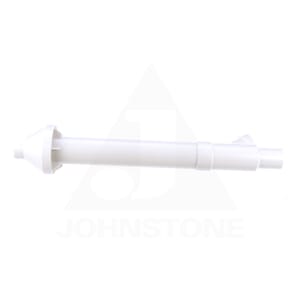

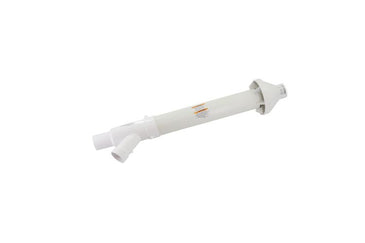

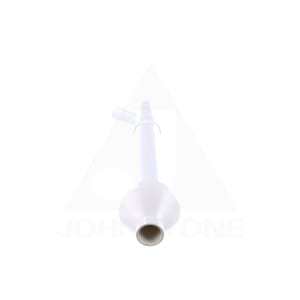

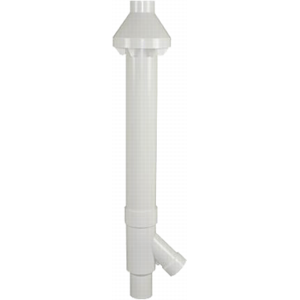

The Source1 1CT0302 is a two concentric vent terminal kit. It is suitable for Category IV gas-fired condensing furnaces. This kit allows both combustion air intake and exhaust vent through a single roof or sidewall penetration. It supports vertical or horizontal termination of vent pipes.

• Allows intake and exhaust through one penetration.
• Designed for vertical or horizontal termination.
• Includes air inlet cap, inlet pipe, vent pipe, and concentric Y.

Product Highlights

This kit provides efficient venting for gas furnaces while minimizing installation space and complexity.

Product Information

Standard Information

• Description: 2 Concentric Vent Termination
• For Use With: G9T 40,000 through 100,000 BtuH; G9D 60,000 through 100,000 BtuH; G9V 55,000 through 95,000 BtuH

Technical Specifications

• Intake vent pipe size: 2 inches
• Overall assembled length: 41 inches
• Intake pipe outside diameter: 3.5 inches
• Air inlet pipe length: 27.25 inches
• Compliance/Notes: Harmonize Code 3917.23.0000
• Country of Origin: United States
• Weight: 5.70 pounds
• Dimensions: 6.50 x 36.00 x 6.50 inches
