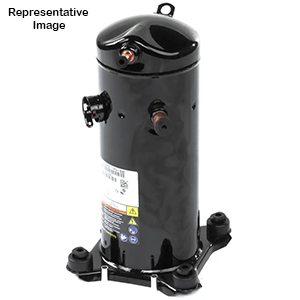

Source1 1505244004 Scroll Compressor 208/230V 1-phase 60hz R-410A Poe

Product Description

The Source1 1505244004 is a scroll compressor designed for residential and light commercial HVAC systems. It operates on 208/230 volt single-phase 60 Hz power and is compatible with R-410A refrigerant. This unit uses POE (polyolester) oil lubrication, which is the standard oil type required for R-410A systems. Scroll compressors are a core component in split systems, heat pumps, and packaged units. They compress refrigerant by using two interlocking spiral scrolls. One scroll stays fixed while the other orbits around it, moving refrigerant from the outer edge inward and compressing it along the way. This design produces smooth, quiet operation with fewer moving parts compared to reciprocating compressors. HVAC technicians prefer scroll compressors for their reliability, efficiency, and lower vibration levels. The 208/230 volt rating makes this compressor compatible with both 208V and 230V single-phase electrical supplies commonly found in residential and small commercial applications across North America. R-410A is a hydrofluorocarbon refrigerant that operates at higher pressures than older refrigerants like R-22. Systems using R-410A require compressors and components specifically rated for those pressures. POE oil is hygroscopic and must be handled carefully to prevent moisture contamination during installation. When replacing a scroll compressor, technicians should flush the system, install a new filter drier, pull a deep vacuum, and verify proper refrigerant charge. This compressor is suited for use in air conditioning systems that require dependable single-phase compression with R-410A refrigerant. It is a direct replacement option for technicians servicing existing equipment or building new systems.

• Scroll compressor design for quiet, efficient refrigerant compression
• Rated for 208/230 volt single-phase 60 Hz power supply
• Compatible with R-410A refrigerant and uses POE lubrication oil

Product Highlights

The Source1 1505244004 scroll compressor delivers reliable single-phase compression for R-410A HVAC systems. Its scroll design and POE oil compatibility make it a dependable replacement for residential and light commercial cooling equipment.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 1505244004

Technical Specifications

• Compressor Type: Scroll
• Voltage: 208/230V
• Phase: 1-Phase
• Frequency: 60 Hz
• Refrigerant Type: R-410A
• Lubricant Type: POE (Polyolester) Oil
