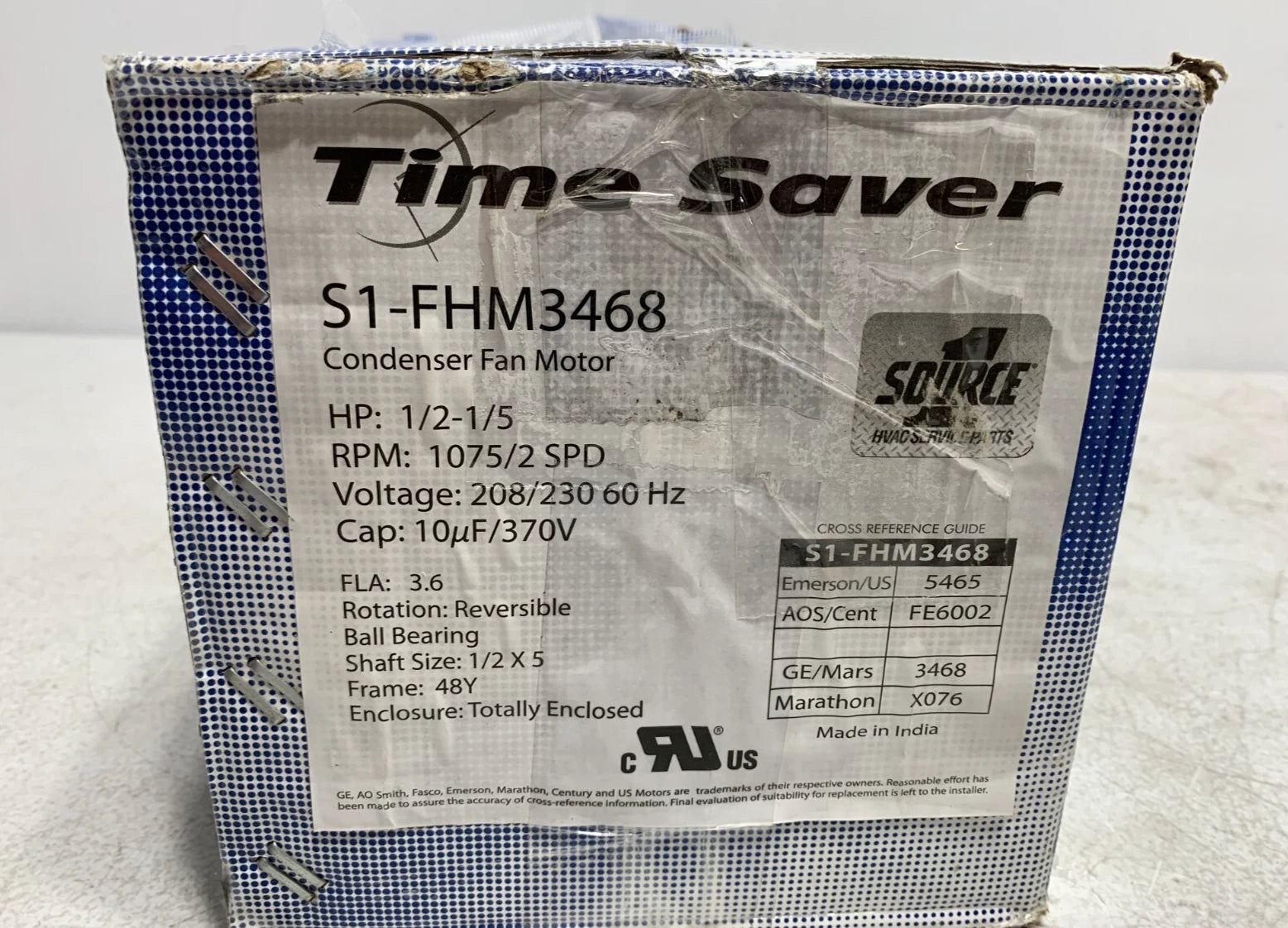

Source 1 S1-FHM3468 Condenser Fan Motor 1/2 to 1/5 HP

Product Description

The Source 1 S1-FHM3468 is a condenser fan motor suitable for various HVAC applications. This motor functions on a voltage rating of 208/230 Volt AC and operates at a frequency of 60 Hz. With a power range of 1/2 to 1/5 HP and a speed rating of 1075 RPM, it offers two available speeds. It is a single-phase unit equipped with ball-type bearings for smooth operation and is designed in an enclosed air-over style. The motor allows for reversible rotation and comes with 36-inch leads for easy connection.

• Operates on 208/230 Volt AC at 60 Hz.
• Power range between 1/2 to 1/5 HP.
• Features reversible rotation for varied applications.

Product Highlights

This motor is built for durability and flexibility, making it ideal for condenser applications in HVAC systems.

Product Information

Standard Information

• Brand: Source 1
• Manufacturer: Johnson Controls

Technical Specifications

• MPN: S1-FHM3468
• Power Rating: 1/2 to 1/5 HP
• Speed Rating: 1075 RPM
• Voltage Rating: 208/230 Volt AC
• Frequency Rating: 60 Hz
• Number of Phases: 1
• Bearing Type: Ball
• Lead Length: 36 inches
• Motor Enclosure Type: Enclosed Air Over
• Number of Speeds: 2
• Reversible: Yes
• Country of Manufacture: India
