SOURCE 1 S1-FHM3467 York Source 1 Furnace Blower Motor 3/4-1/5 HP 208-230V

Product Description

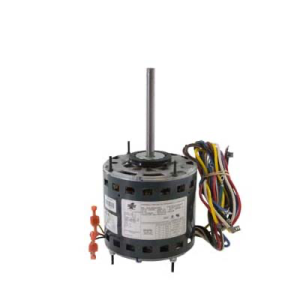

The York Source 1 S1-FHM3467 Furnace Blower Motor is essential for maintaining efficient airflow in HVAC systems. This motor features multi-horsepower capabilities ranging from three-quarters HP to one-fifth HP to accommodate various operational needs. The direct drive design and reversible rotation enhance flexibility for installation and airflow customization.

• Multi-horsepower operation
• 4-speed capability
• Automatic overload protection

Product Highlights

This motor provides durability with Class B insulation and features like resilient rings and extended thru bolts for secure mounting. Its 5-5/8 inch diameter and compatibility with 208-230V power sources make it suitable for many furnace models.

Product Information

Standard Information

• Brand: York
• MPN: S1-FHM3467

Technical Specifications

• Type: Blower Wheel
• Model: S1-FHM3467
• Horsepower: 3/4-1/5 HP
• Motor Diameter: 5-5/8 inches
• Capacitor: Permanent split capacitor
• Duty: Continuous duty, air over
• Insulation: Class B insulation
• Hertz: 60 Hertz
• Phase: Single phase
• Speed: 4 speed
• Capacitor Size: 20 / 10 mfd
• Voltage: 208/230 Volt AC 1-Phase
