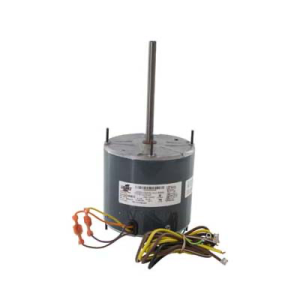

Source 1 S1-FHM3204 York/Source 1 Condenser Fan Motor 1/4 HP 208-230V 825 RPM

Product Description

The Source 1 S1-FHM3204 is a condenser fan motor designed to enhance your HVAC system's efficiency. This motor features a 1/4 horsepower capacity, operates at a voltage of 208-230V, and runs at a speed of 825 RPM. It is engineered for reliability and optimal performance in various environments.

• Durable design for long-lasting usage
• Operates quietly with low power consumption
• Equipped with an automatic thermal overload protector

Product Highlights

The S1-FHM3204 motor is ideal for replacing old or faulty condenser fan motors, ensuring your system runs smoothly.

Product Information

Standard Information

• Brand: Source 1
• MPN: S1-FHM3204

Technical Specifications

• Capacitor Size: 7.5 mfd
• Horsepower: 1/4
• RPM: 825 RPM
• Voltage: 208/230 Volt AC 1-Phase
• Rotation: Reversible
• Frequency: 60Hz
• Phase: Single Phase
• Amps: 2.0 Amps
• NEMA Frame Size: 48Y
• Enclosure: Totally Enclosed Non-Ventilated
• Bearing: Self-Aligning Sleeve Bearing
• Shaft: 1/2 Shaft
• Motor Type: Permanent Split Capacitor
