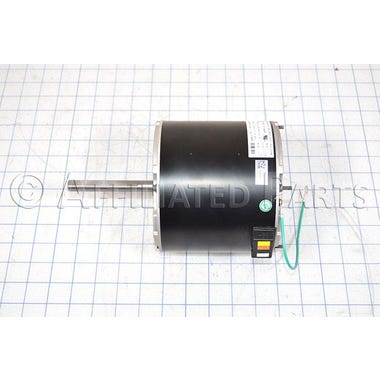

Source 1 S1-6008093 Condenser Motor - 1/2 HP 230V CW

Product Description

The Source 1 S1-6008093 is a condenser motor designed for HVAC applications. This motor operates at 208 to 230 volts and provides half a horsepower at a speed of 1090 RPM. Ideal for air conditioning and refrigeration systems, it ensures effective heat expulsion for optimal cooling. The motor features a totally enclosed air over design, making it suitable for various environments. The motor has a single speed and clockwise end opposite shaft rotation. It is built with a sturdy 48Y frame and has a shaft size of half an inch in diameter and three point eight inches in length.

• Operates at 208-230V, single phase, 60Hz
• Delivers 1/2 HP at 1090 RPM
• Features a durable totally enclosed air over design

Product Highlights

This motor is a reliable choice for keeping HVAC systems running smoothly.

Product Information

Standard Information

• Brand: Source 1
• HP: 1/2

Technical Specifications

• Voltage: 208-230V
• Phase: 1
• RPM: 1090
• Full Load Amperage: 2.3
• Frame: 48Y
• Rotation: Clockwise End Opposite Shaft
• Shaft Diameter: 1/2
• Shaft Length: 3.8
