Source 1 S1-6008079 Condenser Fan Motor 3/4 HP 208/230V

Product Description

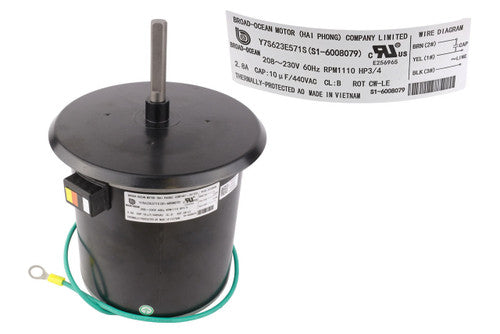

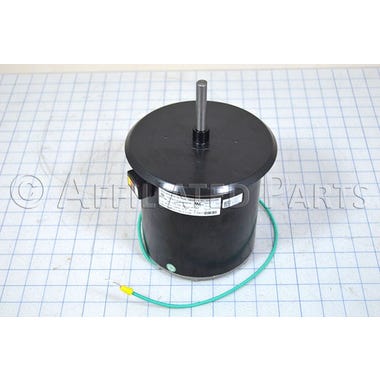

The Source 1 S1-6008079 Condenser Fan Motor is a three-quarter horsepower motor designed for Coleman and Evcon equipment. It operates at 208-230 volts and 60 Hz. This single-phase motor runs at 1110 RPM with counter-clockwise lead end rotation. Constructed with a 48Y frame, it features a shaft diameter of half an inch and a shaft length of three and a half inches.

• Horsepower: 3/4 HP
• Voltage: 208-230 V, Single Phase
• Rotation: Counter-Clockwise Lead End (CWLE)

Product Highlights

Ideal for HVAC applications. It includes a rain shield for protection against water damage, enhancing the durability of the unit.

Product Information

Standard Information

• Brand: Source 1
• Weight: 19 lbs

Technical Specifications

• Manufacturer: Broad-Ocean
• MPN: S1-6008079
• Horsepower: 3/4
• Voltage: 208-230
• Hertz: 60
• Amps: 2.8
• RPM: 1110
• Frame: 48Y
• Shaft Diameter: 1/2
• Shaft Length: 3.5
• Thermally Protected: Yes
• Insulation Class: B
• Bearing Type: Ball
• Enclosure: Open
