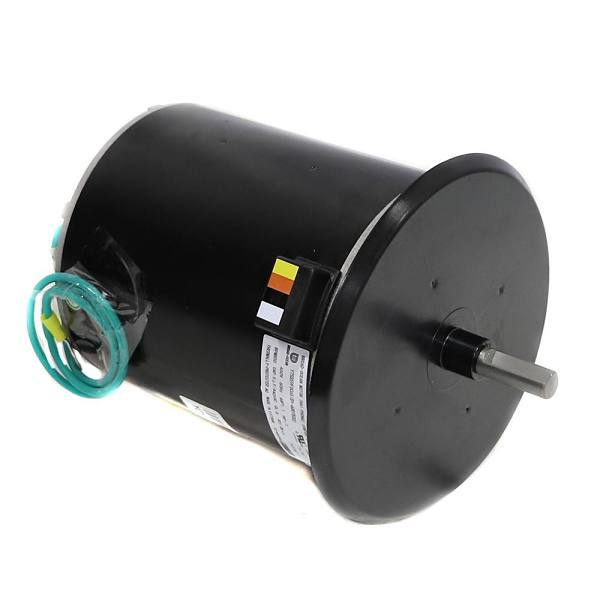

SOURCE 1 S1-6007532 Condenser Fan Motor - 1/3 HP, 460V, 850 RPM, CCW

Product Description

The SOURCE 1 S1-6007532 is a condenser fan motor designed for HVAC applications. This unit provides one-third horsepower at four hundred sixty volts, operating at eight hundred fifty RPM. Its construction ensures durability, suitable for cooling systems and various industrial applications.

• Operates efficiently at eight hundred fifty RPM.
• Includes a rain shield for protection from environmental factors.
• Compatible with multiple condenser fan systems.

Product Highlights

The S1-6007532 is engineered for reliable performance and longevity.

Product Information

Standard Information

• Brand: SOURCE 1
• Model: S1-6007532

Technical Specifications

• Horsepower: 1/3 HP
• Voltage: 460 V
• Phase: Single
• RPM: 850
• Rotation: Counterclockwise from the end opposite the shaft
• Housing: Open
• Enclosure: NEMA Frame 48
• Shipping Weight: 17.15 lbs
• Dimensions: 10.90 inches x 7.50 inches x 7.30 inches
• Country of Origin: Vietnam
